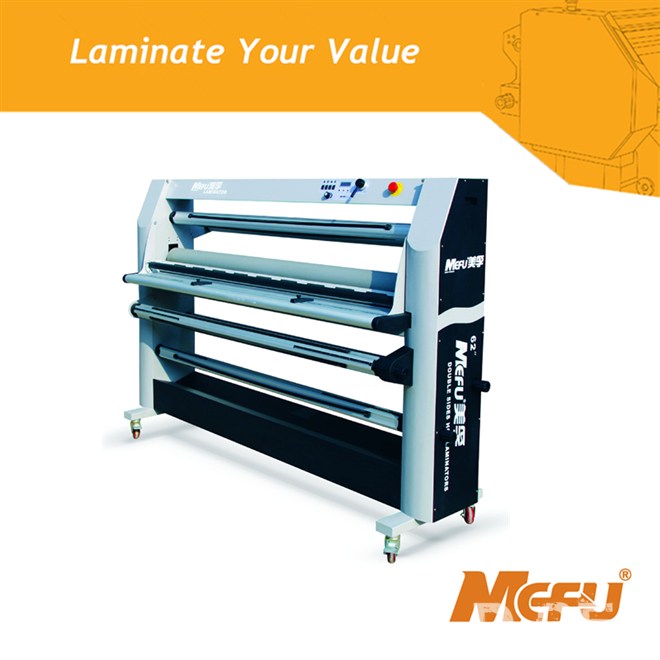

Double side Hot laminator (MF2300-F2)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
MF2300-F2
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Shanghai/Guanghzhou
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
5000 Set/Sets
Delivery Time:
Year
Packaging:
wooden case
Mr. Du Yang



Send a Message to this Supplier

Product Details Company Profile

2.28m/90’’ wide Double sided Hot & Cold mounting, laminator MF2300-F2 which based on MF1700-F2, this finishing machine maximum control and capability in lamination. Variable speed foot pedal provides hands-free control and improves handling when mounting graphics. This size of machine can be used with the extensive range of laminating films, adhesives and substrates to build extra capacity and more versatility. Advanced Laser Safety System, that immediately stops the rollers whenever an obstruction is detected. MF2300-F2 is your business transformer.

Model

MF2300-F2

Type

Heat-assist Cold

Max lamination width

2280mm/90’’

Max lamination thickness

Up to 30mm/1.2’’

Heating

Infrared

Heating type

Dual heated rollers

Max temp

120°C/248°F

Warm up time

15-20 min

Max Speed

Up to 7m/min

Roller

Silicon

Roller diameter

130mm /5’’

Power

5000W

Volt

110V/220V

Height adjustment

Air pressure

Pressure adjustment

Air pressure

Silent air compressor

Optional

Foot pedal switch

Yes

Safety

Laser eye

Certificate

CE, RCM, ROHS

Static-free

Yes

 BENEFITS AND FEATURES



 High quality dual-heated silicon rollers ensures heavy-duty works

• Adjustable settings for increased capacity and versatility

 Double-side & Single-side for Hot & cold lamination

 Unique anti-tilt and anti-fold system ensures clear output



Ease of use

• Automatic fully adjustable pressure and nip gap

• Simple film tension adjustment

• Light weight drop-in supply shafts with auto-grip for easy loading

• Roll-to-roll operation capacity

• Foot pedal switch for pieces accurate application



Safety

• Foot switch for hands free operation

• Laser safety eyes and emergency stops

• CE, RCM, ROHS
