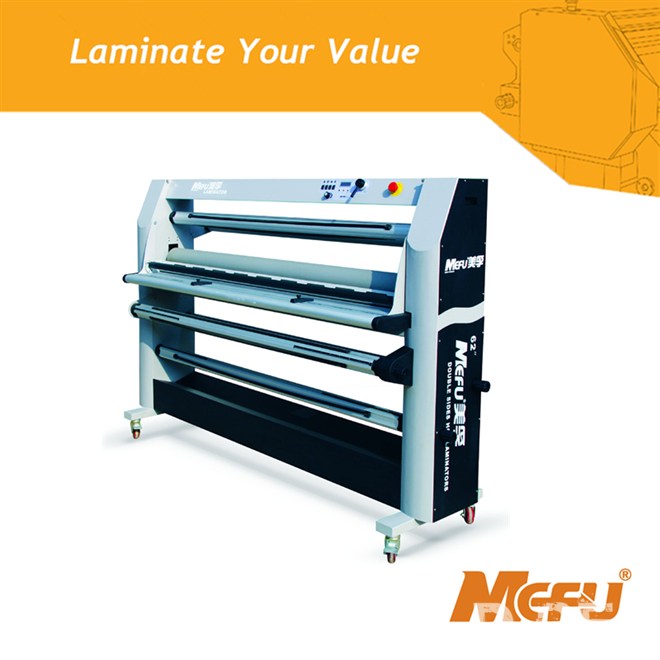

Double-side Hot and Cold / Thermal laminator/ Laminating machine/ laminator machine (MF1700-F2)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
MF1700-F2
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /Set
Shippment Port:
ShangHai, China
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
5000 Set/Sets
Delivery Time:
Year
Packaging:
Free Fumigation Wooden Case
Mr. Du Yang



Send a Message to this Supplier

Product Details Company Profile

Description

MF1700-F2 is a newest double-side hot and cold laminator for signage and Graphic industries. Up to 1620mm(64'') lamination width, mounting up to 28mm(1.1''), with a temperature

up to 120°C(248°F) for both rollers. MF1700-F2 is for extremely demanding finishing

requirements. Use with cold or thermal films for single-side or double-side lamination for

max speed of 9m/min. This wide format and heavy duty laminator is designed for widest

choice of finishing possibilities. MF1700-F2 will enable you to produce any work with the

most demanding quality and efficiency.


Parameter

Working width

162cm/64’’

Preheat time

10-15mins

Substrate thickness

28mm/1.1’’

KW/H

0.9-1.8

Max temp

120°C/248°F

Power

4300w

Speed

Up to 9m(30ft)/min

Volt

110/220v 50-60HZ

Height adjust

Air cylinder

N.W.

200kg/440lbs

Pressure adjust

Air cylinder

Dimensions

660×2150×1450mm

Rollers

Silicon

CE

Yes

Roller diameter

130mm/5.1’’

Air compressor

Optional

Heated method

Infrared

Flatbed

Optional

Features

Double-side Hot and Cold lamination

Speed up to 540m/h

Laminating up to 1.62m/64''

Mounting up to 28mm/1.1''

Absolutely bubble and fold free




Configuration

Pivoting feeding tray provides easy loading of prints

High quality 130mm silicon rollers

Release liner and finished rewinds

Foot control pedal for reversal and hand-free operation

Air cylinder for pressure and height adjustment

Infrared temperature control device

Anti-tilt and anti-fold device

High quality 180w motor




              For more information, please contact: mefu-ex@hotmail.com
