Automatic Hot laminator( MF1700-F1)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
MF 1700-F1
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
SHANGHAI, CHINA
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
5000 Set/Sets
Delivery Time:
Year
Packaging:
Free Fumigation Wooden Case
Mr. Du Yang



Send a Message to this Supplier

Product Details Company Profile

Description

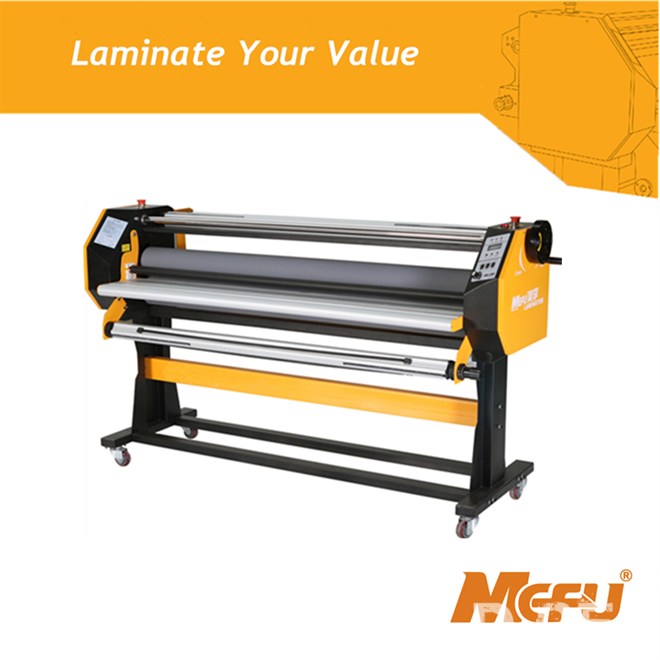

MF1700-F1 is a 1.62m/64'' wide format full-auto hot and cold laminator designed as an

inexpensive option for a wide range application.An ideal laminating solution for Use matte

or gloss thermal films can save your cost during hot lamination. The numerous features

included with the 64in wide format MF1700-F1 hot and cold laminator make it so easy to

use finishing becomes one person.


This laminator is available in different sizes: 1100mm/43''(MF1100-F1), 1270mm/51''

(MF1300-F1+), 1370mm/54'' (MF1400-F1). 1520mm/60''(MF1600-F1+).




Roll with self-locking mandrel provides                           2

Upper roller lift up and

down by  a hand



easy loading of your prints

wheel ensure even pressure

of both sides



Once laminated, the prints can

wound             4 Fully adjustable fraction of rolls through



onto the take-up roll

                                        tension grips




5 Thick pivoting feeding tray with round

edge to avoid damage to prints during

lamination



Parameter

Brand

Mefu

Max width

1620mm

Speed

Up to 7m/min

Laminating type

Hot and cold

Heating method

Heated roller

Rollers

Silicon

Diameter of upper roller

130mm

Max thickness

20mm

Warm up time

10-15 min

Temp range(Cold lamination)

40°C-60°C

Temp range (Hot lamination)

85°C-95°C

Max temp

120°C

Fixed Volt

AC220V-240v  50HZ-60HZ

Fixed power

2200W

Fixed current

12A

Motor power

60W

Reverse function

Yes

Laser safety

Optional

Foot pedal switch

Yes

Packing size

700×2080×1180mm

N.W.

180KG



Features

Hot and cold lamination

2 Speed up to 420m/h

3 Laminating up to 1.62m

4 Mounting up to 20mm

5 Absolutely bubble and fold free



Configuration

Pivoting feeding tray provides easy loading of prints

2 High quality 130mm silicon rollers

3 Pussure and height adjust hand wheel

4 Released liner and finished rewinds

4 Anti-tilt and anti-fold device (Origin)

6 Infrared temperature control device

7 Foot control peda for reversal and hand-free operation

8 High quality 90w motor




           For further information, please contact: mefu-ex@hotmail.com
