Home >> Products >> Matching Equipment >> Laminator >> Heat-assist Cold laminator machine/laminating machine / laminator (MF1700-M1)

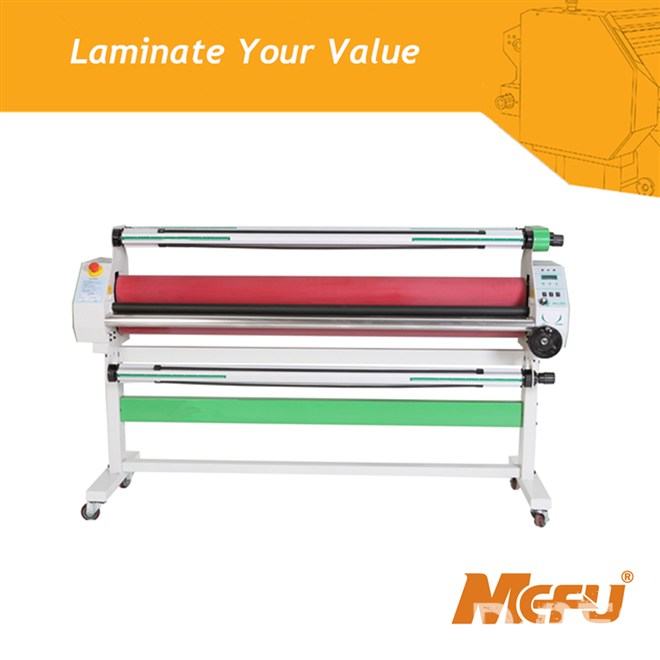

Heat-assist Cold laminator machine/laminating machine / laminator (MF1700-M1)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
MF 1700-M1
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
SHANGHAI, CHINA
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
5000 Set/Sets
Delivery Time:
Year
Packaging:
Free Fumigation Wooden Case
Mr. Du Yang



Send a Message to this Supplier

Product Details Company Profile

Heat-assist Cold laminator

                            MF1700-M1 (1.62m/62'')








Descriptions

MF1700-M1 is the newest upgrade model of Heat-assist Cold Laminator,which advanced ISO

quality rubber roller and antitilt system to make it more accurate and faster during lamination.

MF1700-M1 is a 1.62m/62in full auto Heat-assist cold laminator designed as an inexpensive

option for post printers.Low heating can absolutely avoid air bubbles and snow points for cold

weather. Its simple design makes it extremely easy to use and provides quality laminating results.

The numerous features included with the 60in wide format MF1700F1 hot and cold laminator

make it so easy to use finishing becomes one person.


Parameter

Brand

Mefu

Max lamination width

1620mm/62in

Speed

0m/s-6m/min

Laminating type

Cold(low heating)

Heating method

Heated top roller

Diameter of upper roller

130mm

Max thickness

23mm

Warm up time

5-10 min

Temp range

40°C-50°C

Max temp

60°C

Fixed Volt

AC220V-240v   50HZ-60HZ

Fixed power

1400W

Fixed current

9A

Motor power

60W

Reverse function

Yes

Size

680×1880×1140mm

N.W.

130KG

Shipping weight

180KG


Features

  • Single-side Heat-assist Cold lamination
  • Easy operating with a speed up to 360m/h
  • Improve quality and reduce cost
  • Multiple uses without bubbles

Configuration

  • Stainless steel feeding table
  • Adjustable ISO quality 60w motor
  • 130mm upper rubber roller
  • Auto-take-up system
  • Anti-tilt and anti-fold device (Origin)
  • Pressure and height adjust hand wheel
  • Infrared temperature control device
  • Multi-function foot switch





   For further information, please contact: yang@mefuchina.com
