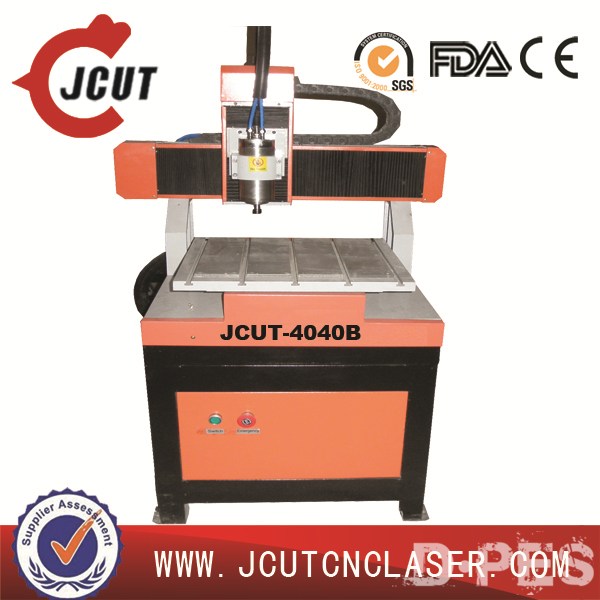

mini cnc router shoe mould making cnc machine JCUT-4040B(15.7X15.7X3.9 inch)
Buying Guides
To choose a suitable machine for your works,pls tell me:
Q1: What about your material , wood or acrylic or ?
Q2: The size of your mateiral , length ? Width and thickness?
Q3: Do you want to cut or engrave your material ? Or both cut&engrave ?
Q4: What machining effection do you want to get ? It is better you can send sample pictures to me .
Q5: The machine choose 220v or 110v or ?
Q6: what about your nearest sea port
Applications:
advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light
box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment, mold processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting.
Parameters:
Machine body: whole cast aluminum
Guideway: linear rail guideway
Working Area (X*Y*Z):400X400X100mm (15.7X15.7X3.9 inch)
Processing accuracy: 0.01mm
Repositioning accuracy: 0.03mm
Spindle: 1.5KW variable speed, water-cooled
Spindle rotating speed: 0-24000rpm/min
Max Moving Speed: 6000mm/min
Working speed:0-5000mm/min
Driving mode:Ball screw
Voltage: AC220V/50Hz
Max. Power consumption: 1.9KW
Feeding Height: 100mm
Drive motor:Stepper
Command:G.code , mmg , plt , uoo,HPGL
Control software:PCI Ncstudio(optional Mach 3 or DSP)
Compatible Software: Type3, Art cut, Art CAM, master CAM software
Certificate:CE, FDA
Pack dimensions: 1050mm X 1050mm X 1600mm wooden trunk
Net weight: 120KG
Option: Rotary axis, vacuum table,dust collector, or bigger spindle
Sample photos:
Key point:
Please kindly tell us your engraving or cutting materials, and materials’ size.
Then we can quickly check and recommend to you the right machine with right working area.
We send below parts for free:
Software
in CD, Controlling Card (PCI card), Water Tank, Water Pump, Engraving
Tools, Data Wire, Power Line, Brush, Spanner and Clamp.
The optional accessories:
1. Rotary axis
----For
engraving on cylindrical shape materials. Please kindly tell us your
cylindrical shape materials’ length and diameter. Then we can add right
rotary axis to the machine, and quote the right price for your rotary
axis.
2. Vacuum table (contain vacuum pump and vacuum pipes)
----For fixing the materials on the working table, especially for bigger working table.
After added vacuum table, the voltage will need to be 3 phase/380V.
3. Dust collector (contain dust collector pump and dust collector pipes)
----For sucking away the dusts, such as wood dusks and so on.
4. DSP controlling system (off-computer controlling) /MACH3(USB interface/Lan interface)
----USB interface, 128MB flash memory
5. Water cycling system (water sink on the working table)
----For engraving on stone or metal materials. It is used to down the spindle’s high temperature
Freight:
We can send this machine to your port or door address by sea or by air. Do as you need.
If sending to your port, please tell us your port.
If sending to your door address, please tell us your address, and better with post code.
Warranty:
One year for machine
We supply online service 24 hours a day MSN, Skype, Yahoo, Gmail and so on.
You can also contact us by email, and we will reply in 24 hours, or by phone if urgently
