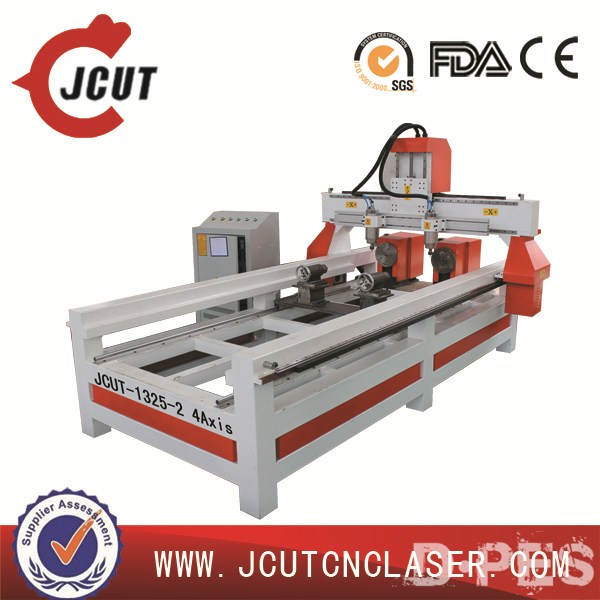

two heads cnc machine for Sign and graphics fabrication JCUT-1325-2R(51/4X98.4X7.8inch)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JCUT-1325-2R
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
0.00-0.00 /
Shippment Port:
Qingdao
Payment Terms:
T/T,Western Union,MoneyGram
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Packaging:
standard wooden trunk for export
Mr. Li Pengfei



Send a Message to this Supplier

Supplier Details
Product Details Company Profile

two heads cnc machine for Sign and graphics fabrication JCUT-1325-2R(51/4X98.4X7.8inch)



Applications:

This series cnc router is suitable for cylinder material engraving user,it is most widely used for furniture leg,chair,stair

and other round material carving. Both diameter and length can be customized according to clients' requsests.

Certifications

Main Parameters:

Machine body

Whole seamless welded steel tube structure

Working size

1300/2x2500x200mm(51/4x98.4x7.8inch)

Rotary axis

200mm(diameter)x2500mm(length)x2

Spindle power

3kwx2 varied speed water cooling spindle

Guideway

Square orbit guideway

Drive mode

X,Y-rack and pinion Z- ballscrew

Drive motor

Stepper motor

Control system

4 axis DSP(or Mach3)

Command

G.code , mmg , plt , uoo,HPGL

Compatible Software

Type3, Artcut, ArtCAM, masterCAM software

Packing size

2100mm X 3300mm X 1600mm wooden trunk

Feeding Height: 400mm

Processing accuracy: 0.05mm

Repositioning accuracy: 0.02mm

Spindle rotating speed: 0-24000rpm/min

Max Moving Speed: 17000mm/min

Working speed: 0-1000mm/min

Voltage: AC220V/380V

Max. Power consumption: 9.6KW

Gross weight: 1500KG



Video links:



http://v.youku.com/v_show/id_XNTEwMDEyODEy.html



http://v.youku.com/v_show/id_XNjU3OTkwMTg4.html



Optional parts: bigger spindle,different rotary diameter,sevro motor
