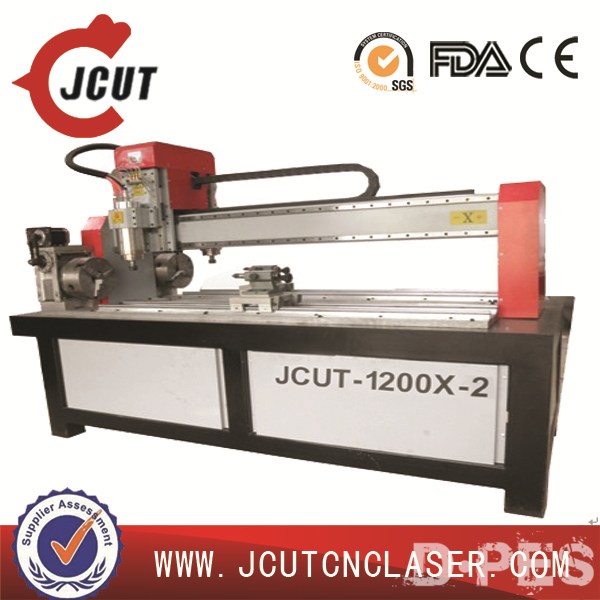

3 axis rotary cnc for 3d statue with high speed JCUT-1200X-2
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JCUT-1200X-2
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
0.00-0.00 /
Shippment Port:
Qingdao
Payment Terms:
T/T,Western Union,MoneyGram
Show Buyers your Ability to Supply:
Production Capacity:
20 Set/Sets
Delivery Time:
Month
Packaging:
standard wooden trunk for export
Mr. Li Pengfei



Send a Message to this Supplier

Supplier Details
Product Details Company Profile

3 axis rotary cnc for 3d statue with high speed JCUT-1200X-2



Features:

1. Seamless steel welding structure

2. Taiwan Hiwin linea guideway

3. Double Rotary axis of 160 mm diameter, 1200mm length(200mm or bigger diameter options,1500mm or longer X axis travel size options)

4.2.2KW water cooled spindle(options:3kw or bigger spindle motor)

5. NCstudio operation system(options:DSP/MACH3 for options)

6. Single head and rotary axis(Options:double/three or multi heads and rotary axes)



Applications:

Round object or cylinder material of follow:

Wood, acrylic, PVC,artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum



Specifications:

Model

JCUT-1200X-2

Max. material size

160mm diamter, 1200mm lengthx2

Machine body

Welded steel structure

X structure

Hiwin linear guideway,rack and pinion drive mode

Z structure

Hiwin linear guideway,ballscrew drive mode

Spindle

2x2.2 kw water cooled

Spindle speed

0-24000 RPM

Drive motor

Stepper system

Max. Rapid Travel Rate

17,000 mm/min

Max. Working speed

10,000 mm/min

Control system

Ncstudio control(optional:Mach3 or DSP)

Software

Type3, Artcut, ArtCAM, masterCAM software

Command

G.code , mmg , plt , uoo,HPGL

Machine precision

0.03 mm

Repositioning precision

0.01 mm

Working voltage

AC 220/380V

Machine Size

1700mmX600mmX1600mm

Net weight

800KG
