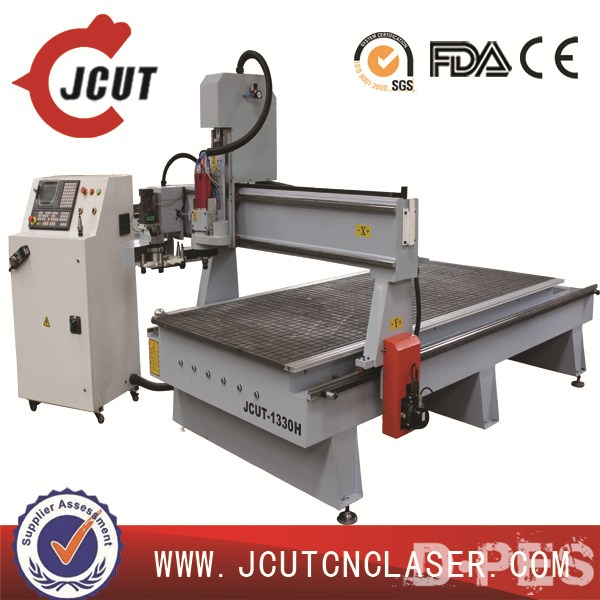

wood working cnc router with atc/wood working router cnc/china atc cnc router JCUT-1330H(51.1''x118.1'' x7.8'')

Buying Guides

To choose a suitable machine for your works,pls tell me:

Q1: What about your material , wood or acrylic or ?
Q2: The size of your mateiral , length ? Width and thickness?
Q3: Do you want to cut or engrave your material ? Or both cut&engrave ?
Q4: What machining effection do you want to get ? It is better you can send sample pictures to me .

Q5: The machine choose 220v or 110v or ?

Q6: what about your nearest sea port

Applications

1. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.

2. Advertisement:engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.

3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.

4. Molding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.

5. Architectural models: engraving fine window, fencing and wall patterns, etc.

6. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.

7. Label: engraving character, number, and other pattern on label for products and on product directly

specifcations:

Standard parameters		Optional parts
Machine body	Whole weld steel tube
Tool bar type	8pcs Disk type	1,Row type tool change under gantry 2,Row type tool change in the back 3,Row type tool change on the side
Working area	1300mm3000mm200mm	Heighten Z z-axis available
Spindle Power	5.5KW BT30 ATC spindle	7.5kw/9kw/11kw Chinese or Italy HSD spindle
Spindle Rotating speed	0-24000rpm/min
Guideway	X,Y,Z Linear guideway
Drive Way	Rack and pinion
Drive mode	Taiwan Servo motor and driver	Japanese Yaskawa/Panasonic servo motor
Max. Speed	20m/min
Working speed	15m/min
Mechanical precision	0.01mm
Software	type 3 software, Artcut software, Artcam software
Control system	Weihong NK200	1,Weihong 260/300 2,Taiwan LNC(Baoyuan)control 3,Taiwang Syntec
Table structure	Vacuum table	1.T slot PVC working table 2,T slot+ vacuum table
Work voltage	AC380V/50HZ	Other optinal parts:
Packaging size	2000mm3600mm1980mm	Oil lubrications automatic tool sensor dust collector
Weight	1700KG	Oil lubrications automatic tool sensor dust collector

Video links:

http://v.youku.com/v_show/id_XNTEwMDk1MTY4.html

http://v.youku.com/v_show/id_XNTEwMDMyMDI4.html

http://v.youku.com/v_show/id_XMzg3ODEwNDI4.html

http://v.youku.com/v_show/id_XNTI3NjUwNjc2.html

http://v.youku.com/v_show/id_XNDU1MDAwODk2.html

Samples:

Key point:

Please kindly tell us your engraving or cutting materials, and materials’ size.

Then we can quickly check and recommend to you the right machine with right working area.

We send below parts for free:

Software in CD, Controlling Card (PCI card), Water Tank, Water Pump, Engraving Tools, Data Wire, Power Line, Brush, Spanner and Clamp
