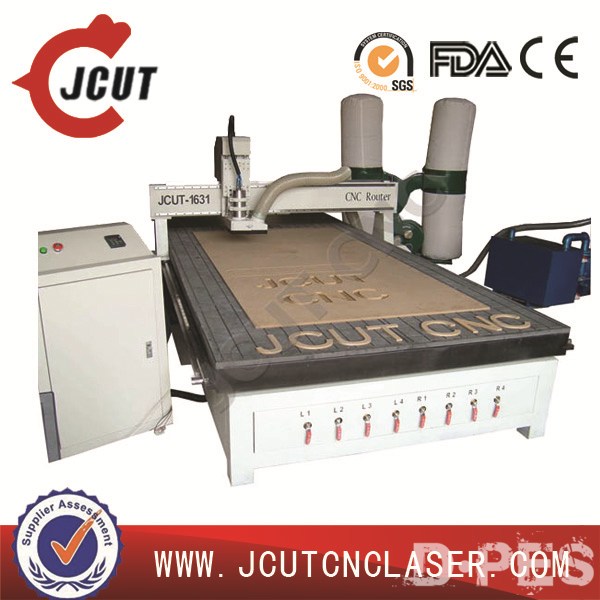

CNC wood cutting engraving machine JCUT-1631(62.9X122X5.9inch)

Features:with vacuum table and dust collector

Professional and efficient woodworking engraving machine

Specifications:
This machine is widely used in woodworking, carving, cutting, engraving, work materials are wood, MDF, aluminum panels, ABS,acrylic, PVC, a variety of decorative materials.
1,Solid gantry, well structure of lathe bed ,stable lathe table, fast speed and high accuracy .
2, High-speed water cooling spindle and high performance subdivision driver ensure to work stably for a long time.
3, Adopt advanced CNC system (NCstudio or DSP control system), This system have break point memory mode and special saving made of different points so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time operation.configured with practical and easily-learned software , can conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor.
Parameters:

Machine body: Weld square steel tube structure

Guideway: linear guide rail

Working Area (X*Y*Z):1600X3100X150mm(62.9X122X5.9inch)

Processing accuracy:0.01mm

Repositioning accuracy:0.03mm

Spindle:3KW variable speed , water-cooled

Spindle rotating speed:0-24000rpm/min

Max Moving Speed:18000mm/min

Working speed:0-10000mm/min

Driving mode:Z-Ball screw ,XY-Rack drive

Voltage:AC220V/50Hz And AC380v

Max. Power consumption:5.5KW

Feeding Height:200mm

Drive motor:Stepper

Command:G.code , mmg , plt , uoo,HPGL

Compatible Software:Type3, Artcut, ArtCAM, masterCAM software

Certificate:CE,FDA

Pack dimensions:2250mm X 3750mm X 1850mm wooden trunk

Net weight:1500KG

Option: Rotary axis, vacuum table.dust collector,or bigger spindle .
