CNC router/cnc engraver/woodworking cnc router/woodmaking cnc machine multi heads JCUT-1530B-6 ( 59''x118''x7.8'' )
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JCUT-1530B-6
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
0.00-0.00 /
Shippment Port:
Qingdao
Payment Terms:
T/T,Western Union,MoneyGram
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
standard wooden trunk for export
Mr. Li Pengfei



Send a Message to this Supplier

Supplier Details
Product Details Company Profile

CNC router/cnc engraver/woodworking cnc router/woodmaking cnc machine multi heads JCUT-1530B-6 ( 59''x118''x7.8'' )

Buying guide

To choose a suitable machine for your works,pls tell me:

Q1: What about your material , wood or acrylic or ?
Q2: The size of your mateiral , length ? Width and thickness?
Q3: Do you want to cut or engrave your material ? Or both cut&engrave ?
Q4: What machining effection do you want to get ? It is better you can send sample pictures to me .

Q5: The machine choose 220v or 110v or ?

Q6: what about your nearest sea port

Certifications

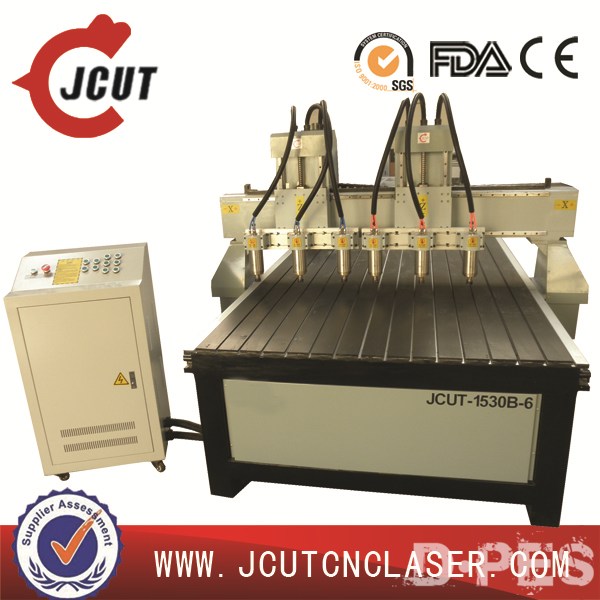

Wood, MDF, Plastic, PVC CNC Engraving Cutting 3D CNC Router JCUT-1530B-6

Applications

1. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.

2. Advertisement:engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.

3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.

4. Molding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.

5. Architectural models: engraving fine window, fencing and wall patterns, etc.

6. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.

7. Label: engraving character, number, and other pattern on label for products and on product directly.

Wood, MDF, Plastic, PVC CNC Engraving Cutting 3D CNC Router JCUT-1530B-6



 Wood, MDF, Plastic, PVC CNC Engraving Cutting 3D CNC Router JCUT-1530B-6Wood, MDF, Plastic, PVC CNC Engraving Cutting 3D CNC Router JCUT-1530B-6

Parameter of wood machine:



Machine body

Welded steel tube structure

Working area

1500/6*3000*200mm

Body dimensions

1900mm x 3700mm x 1650mm

Feeding height

200mm

Working table

T slot working table(optional: vacuum table/vacuum+Tslot table)

Guideway

Linear rail guideway(optional: circular guideway)

Drive mode

Rack and pinion

Drive motor

Stepper motor (optional servo motor)

Spindle

6x1.5kw water-cooling spindle(optional: 3kw or bigger spindle)

Max travel speed

17000mm/min

Working speed

0 - 8000mm/min

Mechanical precision

0.01mm

Command

G code, u00, mmg, plt

Control system

Ncstudio( optional:Mach 3,DSP)

Compatible design software

type 3 software, Artcut software, Artcam software

Pack dimensions

3.7x2.15x1.96m

Gross weight

1400KG

Optional parts: dust collector, water sink



Key point:

Please kindly tell us your engraving or cutting materials, and materials’ size.

Then we can quickly check and recommend to you the right machine with right working area.



We send below parts for free:

Software in CD, Controlling Card (PCI card), Water Tank, Water Pump, Engraving Tools, Data Wire, Power Line, Brush, Spanner and Clamp.



The optional accessories:

1. Rotary axis

----For engraving on cylindrical shape materials. Please kindly tell us your cylindrical shape materials’ length and diameter. Then we can add right rotary axis to the machine, and quote the right price for your rotary axis.

2. Vacuum table (contain vacuum pump and vacuum pipes)

----For fixing the materials on the working table, especially for bigger working table.

After added vacuum table, the voltage will need to be 3 phase/380V.

3. Dust collector (contain dust collector pump and dust collector pipes)

----For sucking away the dusts, such as wood dusks and so on.

4. DSP controlling system (off-computer controlling) /MACH3(USB interface/Lan interface)

----USB interface, 128MB flash memory

5. Water cycling system (water sink on the working table)

----For engraving on stone or metal materials. It is used to down the spindle’s high temperature



Freight:

We can send this machine to your port or door address by sea or by air. Do as you need.

If sending to your port, please tell us your port.

If sending to your door address, please tell us your address, and better with post code.



Warranty:

One year for machine

We supply online service 24 hours a day MSN, Skype, Yahoo, Gmail and so on.

You can also contact us by email, and we will reply in 24 hours, or by phone if urgently

Other CNC router modles:

Wood, MDF, Plastic, PVC CNC Engraving Cutting 3D CNC Router JCUT-1530B-6



Video links:

http://v.youku.com/v_show/id_XNTEwMTIwNDI4.html

http://v.youku.com/v_show/id_XNTEwNTEzMTg4.html

Our workshop:

Wood, MDF, Plastic, PVC CNC Engraving Cutting 3D CNC Router JCUT-1530B-6

Wood, MDF, Plastic, PVC CNC Engraving Cutting 3D CNC Router JCUT-1530B-6
