ATC cnc wood machine wood engraving machine/ cnc router for wood/cnc carving machine for furniture industry JCUT-1836H
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JCUT-1836H
Select Payment and Shipping Terms:
Min. Order Quantity:
1
Place of Origin:
Min. Order:
10
FOB Price:
0.00-0.00 /
Shippment Port:
Qingdao
Payment Terms:
T/T,Western Union,MoneyGram
Show Buyers your Ability to Supply:
Production Capacity:
30 Set/Sets
Delivery Time:
Month
Packaging:
standard wooden trunk for export
Mr. Li Pengfei



Send a Message to this Supplier

Supplier Details
Product Details Company Profile

ATC cnc wood machine wood engraving machine/cnc router for wood/cnc carving machine for furniture industry    JCUT-1836H(70.8''x98.4'' x7.8'')

Buying guide

To choose a suitable machine for your works,pls tell me:

Q1: What about your material , wood or acrylic or ?
Q2: The size of your mateiral , length ? Width and thickness?
Q3: Do you want to cut or engrave your material ? Or both cut&engrave ?
Q4: What machining effection do you want to get ? It is better you can send sample pictures to me .

Q5: The machine choose 220v or 110v or ?

Q6: what about your nearest sea port

Applications

1. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.

2. Advertisement:engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.

3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.

4. Molding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.

5. Architectural models: engraving fine window, fencing and wall patterns, etc.

6. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.

7. Label: engraving character, number, and other pattern on label for products and on product directly.

Certifications

Contact US

Email:cnclaser(at)jcutcnclaser.com

Skype:jcutcnc08 Gmail:jcutcnc08

Mobile:86-13969197759 WhatsApp & Wechat available

Standard parameters

Optional parts

Machine body

Whole weld steel tube



Tool bar type

8pcs row type tool change under gantry

1,Row type tool change behind the table

2,Row type tool change on the side

3,disk tool magazine

Working area

1800mm*3600mm*200mm

Heighten Z z-axis available

Spindle Power

 5.5KW BT30 ATC spindle

7.5kw/9kw/11kw Chinese or Italy HSD spindle

Spindle Rotating speed

0-24000rpm/min



Guideway

X,Y,Z Linear guideway



Drive Way

Rack and pinion



Drive mode

Taiwan Delta Servo motor and driver

Japanese Yaskawa/Panasonic servo motor

Max. Speed

20m/min



Working speed

15m/min



Mechanical precision

0.01mm



Software

type 3 software, Artcut software, Artcam software



Control system

Taiwan LNC control(Baoyuan)

1,Weihong 200/260/300

2,Taiwan Syntec

3,Taiwan LNC control(Baoyuan)

Table structure

Vacuum table

1.T slot PVC working table

2,T slot+ vacuum table

Work voltage

AC380V/50HZ

Other optinal parts:

Packaging size

2100mm*3200mm*1980mm

Oil lubrications

automatic tool sensor

dust collector

Weight

2300KG

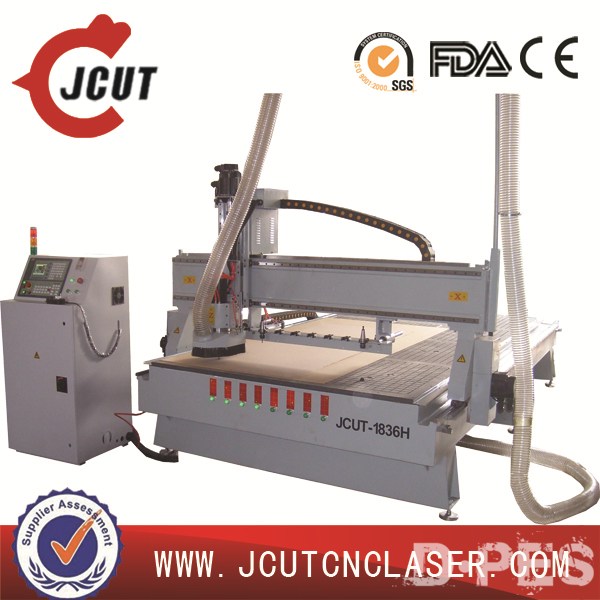

 Machine photos:

Video links:

http://v.youku.com/v_show/id_XNTEwMDk1MTY4.html

http://v.youku.com/v_show/id_XNTEwMDMyMDI4.html

http://v.youku.com/v_show/id_XMzg3ODEwNDI4.html

http://v.youku.com/v_show/id_XNTI3NjUwNjc2.html

http://v.youku.com/v_show/id_XNDU1MDAwODk2.html

Samples:

Other ATC models:

Our factory:

Work flow:
