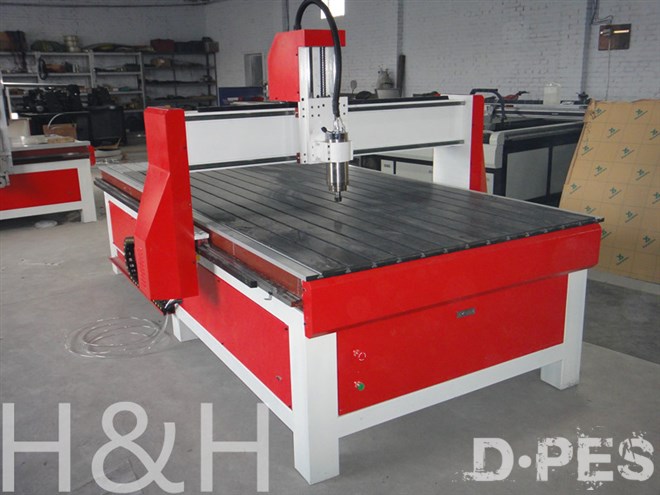

H&H PVC engraving machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
H&H engraving
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-1.00 /Set
Shippment Port:
Qingdao
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
Fumigate wooden case
Ms. Wu Lorna



Send a Message to this Supplier

Product Details Company Profile

Technical data:



Model

H&H-1224

Working area

1200*2400*120

Table size

1600*2800

Spindle power motor

2.2KW

Spindle speed

0-24000rpm

Table structure

Aluminum profile with PVC table

XYZ structure

XYZ-BALL SCREW

Max idle speed

35m/min

Max engraving speed

12m/min

Driving system

Stepper

Command

G Code

Working voltage

AC220V-50Hz

Weight

800kg

Operation system

Weihong/DSP  NC studio/DSP

Working accuracy

±0.05mm

Characteristics:

1.High-speed, the idle speed can reach 35m/min, and engraving speed reach 12m/min. Applicable to process wooden products ,sign plate, acrylic and metal material.

2.Adopt imported high precision square guide rail, the machine have a big weight loading ability and long life span; Y-axis adopts double engine driving, high speed, low noise and running smoothly.

3.The machine can compatible with all kinds of software like: JINGDIAO, Type3, Artcam, Castmate, WENTAI,etc, CAD and CAM designing software.

4.Convenient controlling. The controlling software is easy to learn and operate, the curve and straight running are in same speed. The engraving side is smooth and neednt further processing.

5.The main axis diameters are 3.17mm, 4mm, 6mm, 8mm, could change according to demands.
