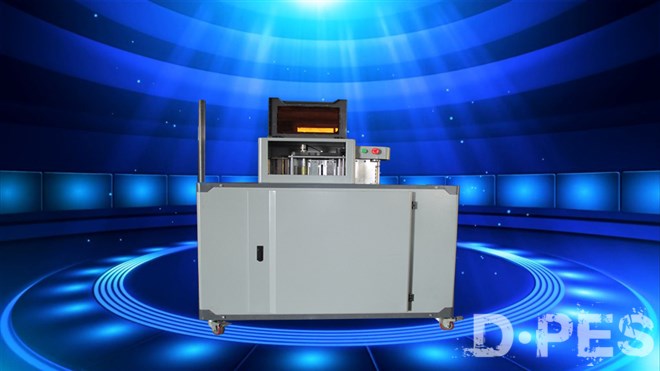

H&H Channel Flat Aluminum bending mahcine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
H&H bending
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-1.00 /Set
Shippment Port:
Qingdao
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
Fumigate wooden case
Ms. Wu Lorna



Send a Message to this Supplier

Product Details Company Profile

Technical data:

Operating  principle

Automatic feed , slot and bend

Available material

Flat,Channel Aluminum

Slot angle

45°-135°

Bending radius

12mm

Feeding width

20mmWidth128mm

Feeding thickness

Flat Aluminum: 0.3mm-1.2mm

Channel Aluminum: 0.3mm-1.0mm

Machine watt

1500W

Machine size

1350mm*700mm*1300mm

Machine weight

350KG

Voltage

220V/110V

Working air pressure

0.6Mpa


Characteristics:

1. Automatic feed , automatic notch, automatic bend

2. No need to fit the trimcap separately, simplified the fabricate process

3. High speed, stepper motors controlling system, it only takes 48 seconds to finish a 30cm height letter like s

4. Available material width ranges from 20mm to 128mm

5. Energy saving and environmental protection. Total power 1500w, actual service power less than 1500w.

6. Can read muti-vector file, the formats like dxf ,ai ,matching with the engraving software perfectly.

7. Size 1350*700*1300mm

8. processing materials: flat aluminum and channel aluminum. Processing width: 20mm-128mm  aluminum :0.3mm -1.2mm(flat), 0.3mm-1.0mm(channel)

9. Special specification of this equipment is available.
