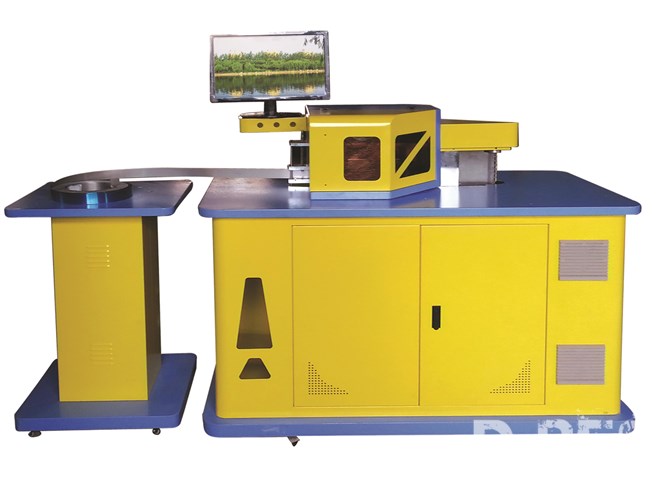

H&H S3 Three-in-one CNC Digital bending machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
H&H bending
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-1.00 /Set
Shippment Port:
Qingdao
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
Fumigate wooden case
Ms. Wu Lorna



Send a Message to this Supplier

Product Details Company Profile

Machine Technical data:

Operation principle

Automatic feedingslotting and bending

Available material

Aluminumstainless steelgalvanized iron

Slot angle

45°-135°just for aluminum

Bending radius

10mm

Material width

20mmWidth150mm

Material thickness

0.3mmAluminum1.5mm

0.3mmStainless Steel1.0mm

Power

1800W

Machine size

1850mm*880mm*1300mm

Machine weight

400kg

Voltage

220/110V

Working Air pressure

0.6Mpa

Characteristics:

① Cut angle from 45° to 135° and it can control depth precision, by using the CNC axis,to achieve the processing of various types of profile bending angle precision.

② Intelligent software controlling and intelligent inspection to avoid collision in words bending process.

③ Unique bilaterally symmetrical bending distribution to avoid bending interfere in a most effective way, this also improved the bending strength greatly.

④ Unique stainless steel planer tool and channel aluminum milling cutter two individual systems, according to different materials arbitrarily switching, the operation is simple and convenient.

⑤ Can read multi-vector files, like the formats like AI,DXF,ALT, matching with the engraving software perfectly.

⑥ Adopt rotary handwheel to adjust feeding depth, the operation is simple and convenient.

⑦ Using imported square guide rail and a high precision lead screw to control the depth of slotting intellectually.

⑧ Special specification of this equipment is available.

Advantage:

1.New S3 three-in-one CNC bending machine have two individual working systems and two bending axis, one for stainless steel and another for aluminum.

2.The convert of slotting different materials just need press a single button! Its efficient and convenient.
