Wide-format high speed flatbed UV digital printer
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JHF-F6600/F3600
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Unit/Units
Place of Origin:
Min. Order:
125
FOB Price:
USD 10000.00-12000.00 /Unit
Shippment Port:
TIANJIN PORT
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
300 Unit/Units
Delivery Time:
Month
Packaging:
Wooden Box
Ms. Beijing innovation technology co.,ltd JHF



Send a Message to this Supplier

Product Details Company Profile

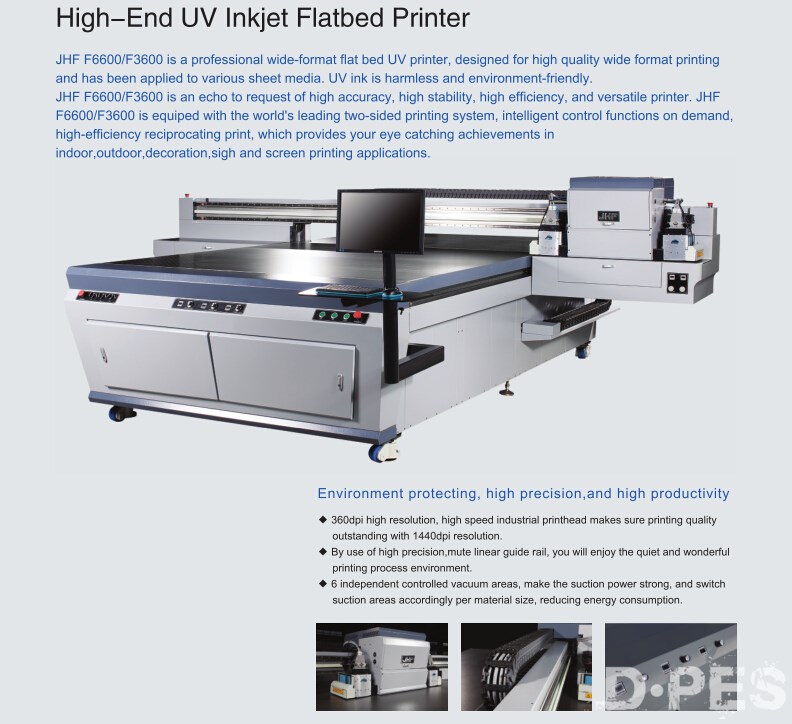

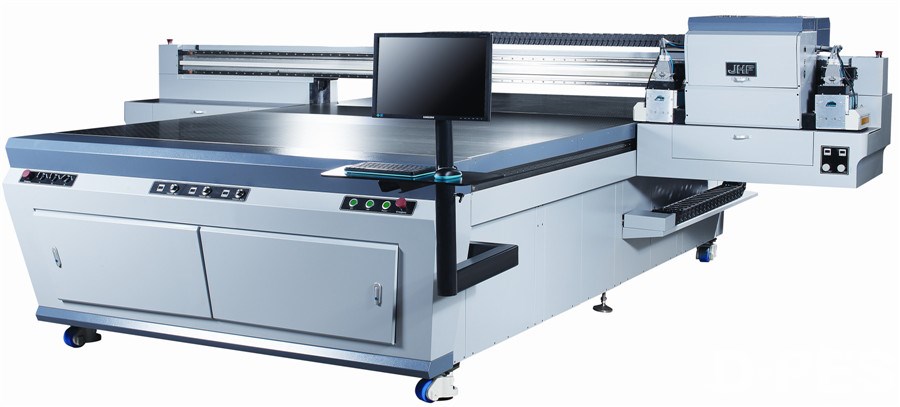

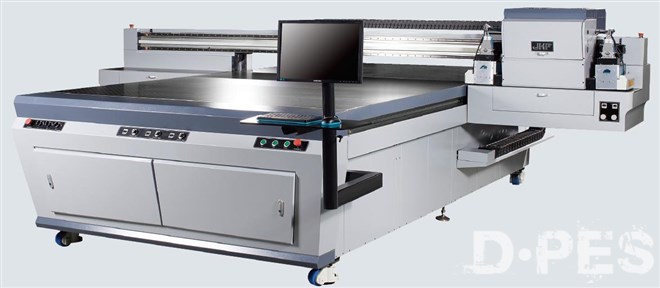

Wide-format high speed flatbed UV inkjet printer

JHF F6600/F3600 is a professional wide-format flat bed UV printer, designed for high quality wide format printing and has been applied to various sheet media. UV ink is harmless and environment-friendly. JHF F6600/F3600 is an echo to request of high accuracy, high stability, high efficiency, and versatile printer. JHF F6600/F3600 is equiped with the world's leading two-sided printing system, intelligent control functions on demand, high-efficiency reciprocating print, which provides your eye catching achievements in indoor,outdoor,decoration,sigh and screen printing applications.

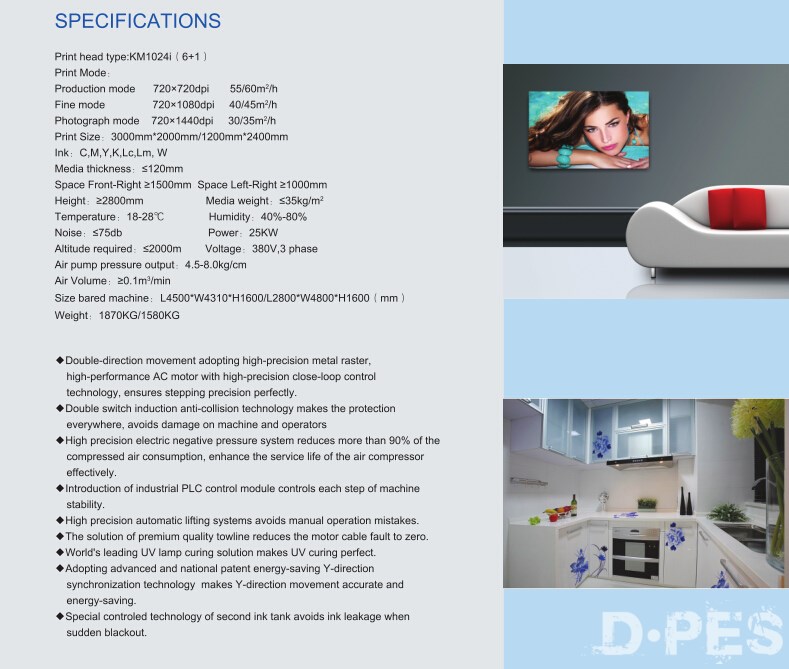

Specifications

Print Mode:            F6600             /               F3600

Printhead: KM1024i 6*2  13pl  high speed and high precision industrial printhead

Print Size:      3000mm*2000mm     /      1200mm*2400mm

Production mode   4pass: 720×720dpi        55/60m²/h
Fine mode             6pass: 720×1080dpi      40/45m²/h

Photograph mode  8pass: 720×1440dpi      30/35m²/h
Ink:C,M,Y,K,Lc,Lm, W
Media thickness:≤120mm
Space Front-Right ≥1500mm  Space Left-Right ≥1000mm
Height:≥2800mm                     Media weight:≤35kg/m²
Temperature:18-28℃               Humidity:40%-80%
Noise:≤75db                             Power:25KW
Altitude required:≤2000m        Voltage:380V,3 phase
Air pump pressure output:4.5-8.0kg/cm²

Air Volume:≥0.1m³ /min










  • Double-direction movement adopting high-precision metal raster,high-performance AC motor with high-precision close-loop control technology, ensures stepping precision perfectly.

  • Double switch induction anti-collision technology makes the protection everywhere, avoids damage on machine and operators
  • High precision electric negative pressure system reduces more than 90% of the compressed air consumption, enhance the service life of the air  compressor effectively.
  • Introduction of industrial PLC control module controls each step of machine stability.
  • High precision automatic lifting systems avoids manual operation mistakes.

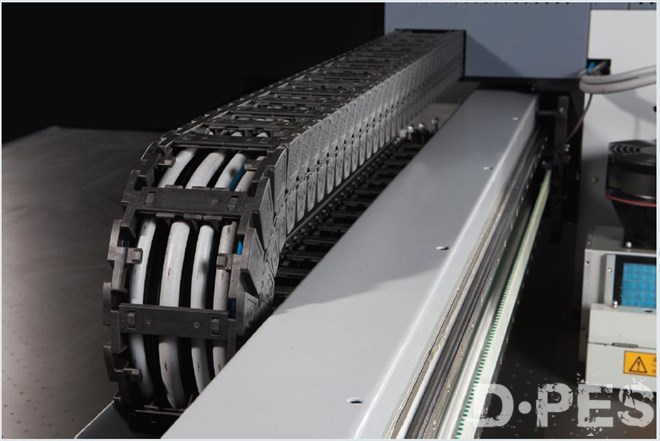

  • The solution of premium quality towline reduces the motor cable fault to zero.
  • World's leading UV lamp curing solution makes UV curing perfect.
  • Adopting advanced and national patent energy-saving Y-direction synchronization technology makes Y-direction movement accurate and energy-saving.
  • Special controled technology of second ink tank avoids ink leakage when sudden blackout.
