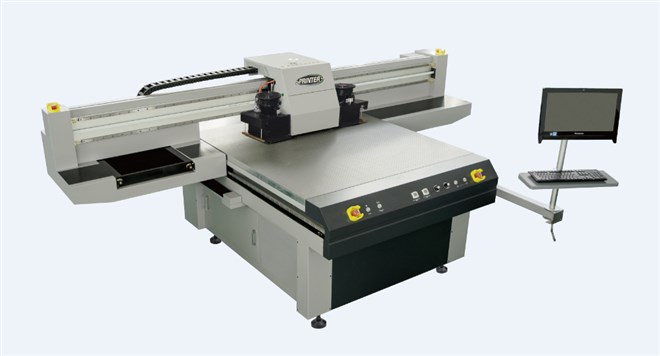

Industrial Grade LED-UV Flatbed Printer
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Makecolor F1212
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Shanghai Port
Payment Terms:
T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
50 Set/Sets
Delivery Time:
Month
Packaging:
Wooden case
Mr. Liu Jack



Send a Message to this Supplier

Product Details Company Profile

With Original Ink-jet Technology, the Printer Produces Picture of Ultra High Quality



Relying on piezoelectric ink-jet technology, the printer has a high precision control of the ink-spraying. Besides, with a maximum resolution of 1440 dpi, the printer is also capable of representing the minutest details of a picture. Even tiny words in 6 point can be clearly printed out, with their smooth and sharp edges, in this printer.











The Printer's Original Mechanical Advantage Ensures Stronger Reliability and More Convenient Printing

1. The MAKECOLOR UVF1212 UV printer adopts an imported double-thread screw and double guide rail wide-sided scan machinery structure. The load bearing capability of the printing platform is 50kg/㎡. The printer can handle materials with a maximum thickness of 80mm. The printing platform's function of sectional vacuum absorption meets the demand of printing media in various formats and ensures a close bond between media and the platform.




2. Ink detection alarm system: when anyone ink barrel color ink is about to run out, this system can point out what color ink you need to add ink.












3. A unique media-positioning rod and one-key type pneumatic controller installed in this MAKECOLOR F1212 UV printer provides accuracy and convenience respectively for panel-loading and panel-positioning. This rod also spares any deviation in repetitive printing.











4. The printer's imported high-sensitivity detecting head possesses an automatic height-measuring system which can automatically measure and adjust the height of materials through software. This process makes the positioning of materials more accurate. This system replaces the traditional operation of manual lifting and provides a more convenient application.









5. Use famous brand UV-LED curing lamp,non-deformation, non-cracking,rapid drying,long using life.

















6. High-power servo motor,with digital accurate driver,developed the running accuracy of the machine.









7. The machine can be configured as K C M Y/K C M Y Lc Lm/K C M Y *2 and K C M Y +W +V;Moreover,the machinecould spray with white color as bed or cover or spot-color printing.









8. The installation of IGUS drag chain line, DELTA servo motor and MEGADYNE hold-in range in this printer ensures a reliable operation in the long run.

The Negative Pressure System Composed of Imported Components Ensures the Quality of Printed Works


1.The standby backup battery of the printer can maintain the work of negative pressure system when the printer is suddenly short of electricity. Furthermore, the printer can be engaged in work as soon as the supply of electricity continues.

Eco-friendly Ink

This product uses eco-friendly UV curing ink (a new trend in the future) which does not contain VOC (volatile organic compounds).
