Banner welding machine/Automatic pvc banner welding machine/banner welding machine/Flex/PVC Banner welder/poster welder/outdoor media welder
Facebook Twitter Delicious Google Email this page
Product Details:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 1400.00-1500.00 /Set
Shippment Port:
Guangzhou, Tianjin,Shanghai,Qingdao
Payment Terms:
T/T,Western Union,Other
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets
Delivery Time:
wooden & carton
Miss. Yang Ella

Send a Message to this Supplier

Product Details Company Profile

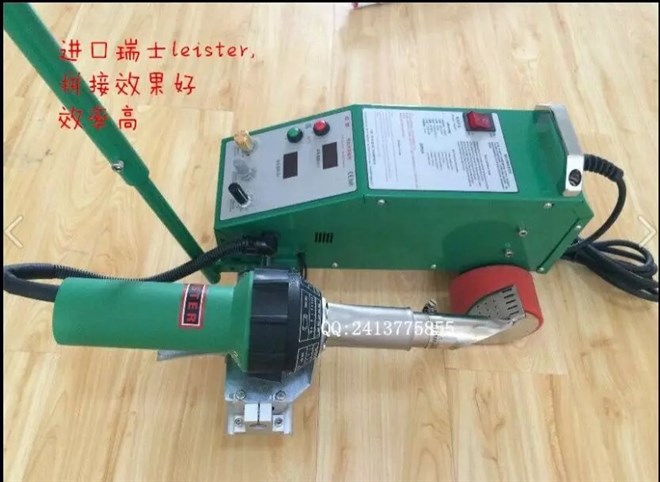

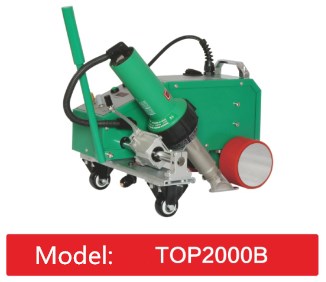

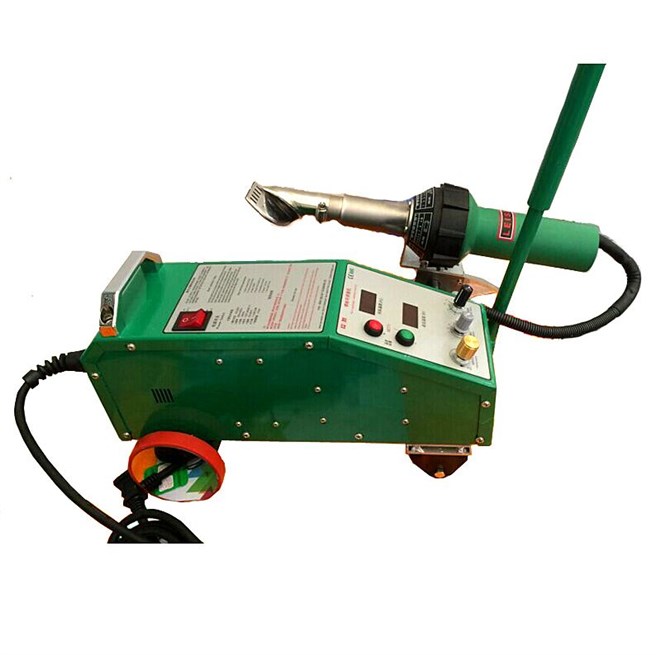

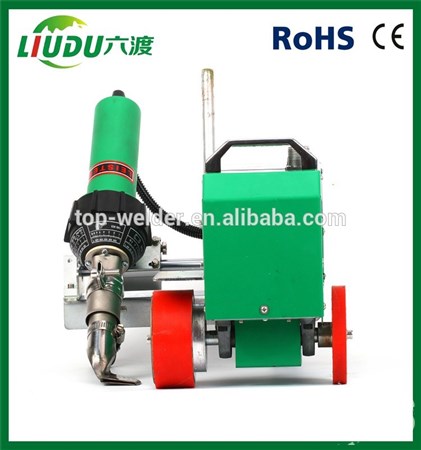

TOP2000B Banner welding machine

Product parameters:


Fan:Leister original fan

Walk speed:1-12m/min

laser:laser positioning line,make welding more accurate

Handrial:standing to operate,move machine conveniently

LED light:more convenient work in night

Temperature control:digital temperture control,diginal display,temperature float±1

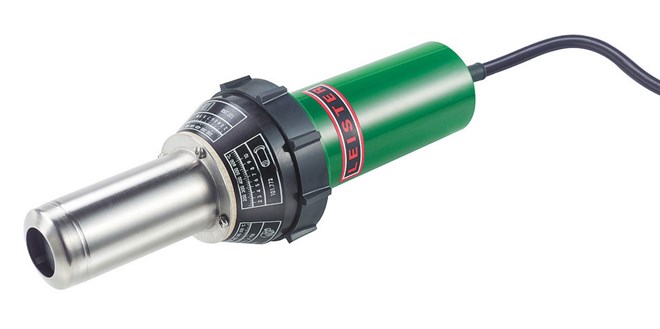

Heating element:Top2000B is original Leister heat gun




Temperature scope:30-650

The thickness of material to be weld:0.2-2mm.

Welding width:2-5cm

Net weight:16kg

Gross Weight:22kg

Packing size:56*39*39mm

Package: Carton & Wooden.

1. Operation:

1.First, make the picture smooth and tight, take joiner to accurate (about 2-4cm), fixed edges with tape or glue on

the ground.

2.Set temperature and walk speed:connect power, set temperature and walk speed(according to thickness of banner), warm the welder.(in general temperature we set is 350-400 degree it means put set temperature button of the heat gun around 8.Walking speed is around 4,

if the banner burnt.we can put temperature lower or make walking speed faster. If can not weld strong,

put temperature higher or make walking speed slower).check photo below:

3.Start welding:when actual temperature of the display screen reaches temperature that you want, we can begin to weld.put the walking handrail(at end of the machine)to left,machine Begin to work automatically.

At begin of weld,we should use one hand to take one banner up,then put nozzle between two banners

4.During welding,let hot air nozzle between two overlap pieces. And be make sure hot air nozzle and Rubber wheel walk in straight line.if not,please adjust by hand.check photo:

5.Finish welding:turn the walking handrail to the right ,machine stop walk,but before cut off the power,we should put the set temperature button to zero.when the actual temperature below 50 degree.we can cut off the main power.or it would damage heat system.

Tips:For first user,we can use waste banner to test and find proper temperature,we can do like this:take a small banner close the nozzle,if the banner hot melt quickly,it means,the temperature is OK,it not strong or burnt,we can increase or reduce temperature.we can also write down the temperature for this thickness of banner as sample.in next welding,based on this temperature.we just need

to increase or reduce the temperature depends on thickness of banners.

. notice:

1. During operating, if the surface cloth is dissolved and scorched or the cloth are not sticked together, please stop to adjust the temperature or speed.

2. During operating,if the seaming part is not in right position, please stop to adjust fixing position.

3. During operating, make sure clothes are flat so that stick together smoothly.

4. The hot wind of heater cannot touch the press-wheel or the rubber of press-wheel is easy to be burned down.

5.Adjust temperature to zero before turn off the heater.Switch off after 5-10 minutes.
