panel furniture automatic connection line for cutting nesting cell
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
nesting cell
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /Set
Shippment Port:
Qingdao Port
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
0 Set/Sets
Delivery Time:
Month
Packaging:
The cnc center is to be packed with plastic sheet for cleaning and damp proofing. Fasten the cnc machine into the wood case for safety and against clashing. Transport the wood case into the container.
Miss. Zou Doris



Send a Message to this Supplier

Product Details Company Profile

panel furniture automatic connection line for cutting nesting cell

.png

Product Description

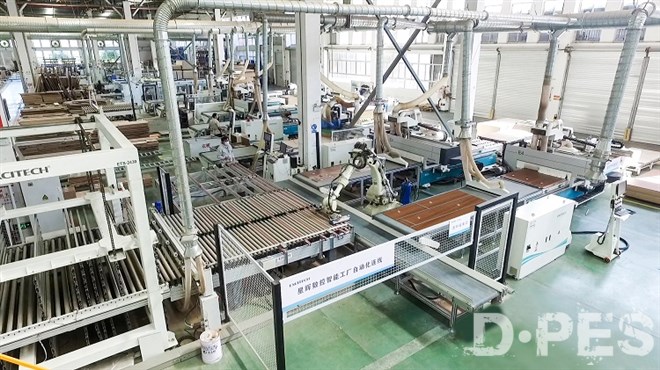

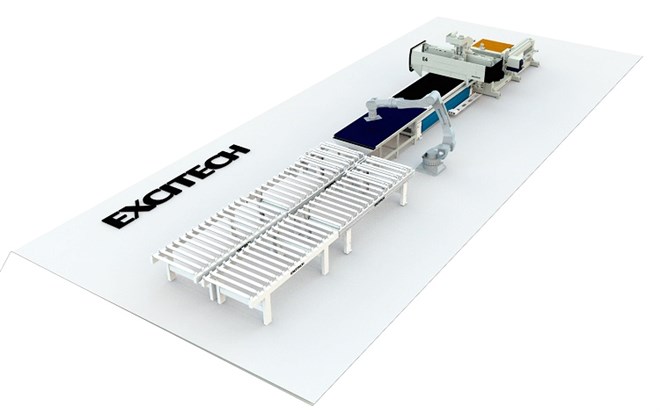

 Excitech Smart Factory strives to make your production smarter, faster and more cost-efficient with minimun human labor required. It composed of nesting Cell, Edgebanding Cell and Drilling Cell. Basically, Nesting Cell has E4-auto labeling machine, Machnical robot, Return Conveyors, Cabinet Box and Excitech software.

Technical Parameter

Series

E4-1224D auto loading and unloading with auto-labeling

Travelling size

2500*1260*200mm

Working size

2440*1220*70mm

Table size

2440*1220mm

Loading and unloading speed

15m/min

Transmission

X Y rack and pinion drive, Z ball screw drive

Table structure

Vacuum table

Spindle power

9.6kw

Spindle speed

24000r/min

Travelling speed

80m/min

Working speed

25m/min

Tool magazine

Carousle 8 slots

Driving system

Yaskawa

Controller

OSAI/ Syntec

Voltage

AC380/3PH/50HZ



Robot Model: SRA166L-01
~World Class Speed Robot
Robot motion makes minimum cycle times unbeatable. Light weight and high rigidity design makes high acceleration and minimum vibration. Maximum speed on all axes reduces cycle time. Improved productivity by these design.
~Easy to use
  • Improved motor drive controls for accurate positioning and repeatability.
  • Slim and compact design allows closer installation in less floor space.
  • Improved maintenance item. It can do easy parts replacement and inspection.
~Energy saving
Power consumption reduced 15% from existing model by reducing the robot’s weight by 20% using newest motor drive controls.

Conveyor Table : 3500*2700*900mm


Detail Image

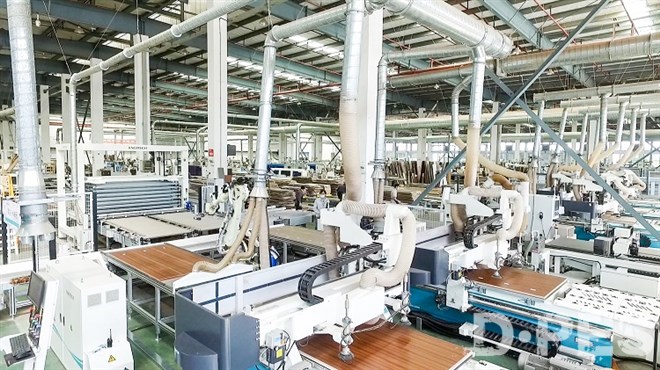

1. Nested-based CNC with Pre-labeling


2. Robot

machine part 1.jpg

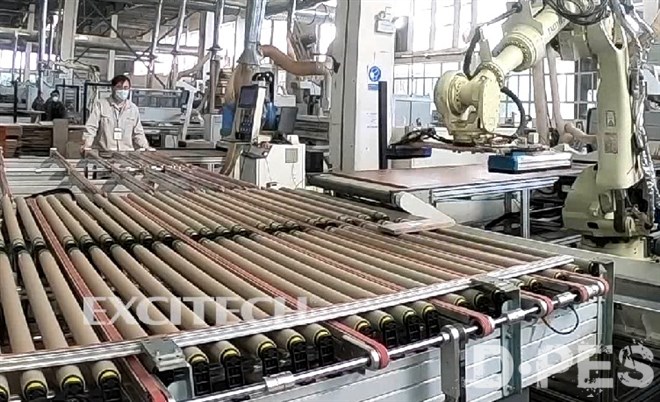

Robot automatically puts the semi-finished product on the conveying roller table for subsequent operation.

Sample

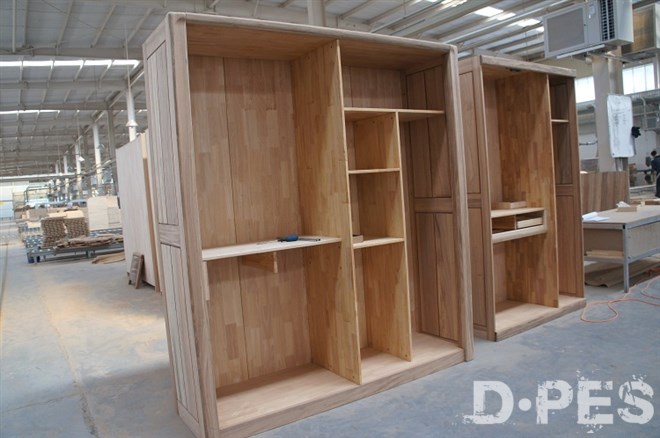

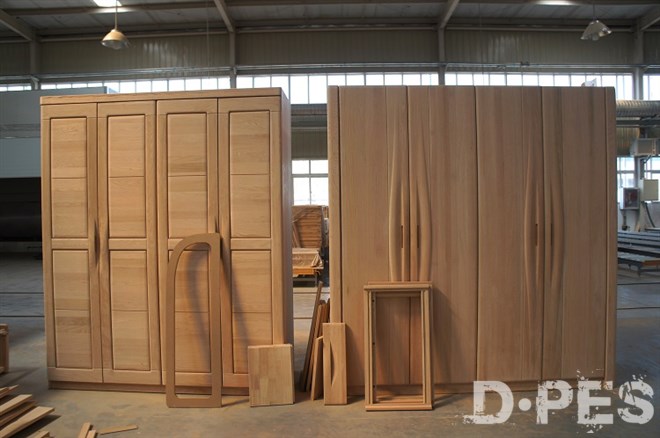

Application: widely used for processing Panel Furniture Production Line such as cabinet door, wooden door, solid wood furniture, panel wood furniture, etc.

sample 1_conew1.jpg

Company Information



Company introduction

  • EXCITECH is a company specializing in the development and manufacture of automated woodworking equipment. We are in the leading position in the field of non-metallic CNC in China. We focus on building intelligent unmanned factories in the furniture industry. Our products cover plate furniture production line equipment, full range of five-axis three-dimensional machining centers, CNC panel saws, boring and milling machining centers, machining centers and engraving machines of different specifications. Our machine are widely used in panel furniture, custom cabinet wardrobes, five-axis three-dimensional processing, solid wood furniture and other non-metal processing fields.
  • Our quality standard positioning is synchronized with Europe and the United States. The whole line adopts standard international brand parts, cooperates with advanced processing and assembly processes, and has strict process quality inspection. We are committed to providing users with stable and reliable equipment for long-term industrial use. Our machine are exported to more than 90 countries and regions, such as United States, Russia, Germany, the United Kingdom, Finland, Australia, Canada, Belgium,etc.
  • We are also one of the few manufacturers in China that can carry out the planning of professional intelligent factories and provide related equipment and software. We can provide a series of solutions for the production of panel cabinet wardrobes and integrate customization into large-scale production.Sincerely welcome to our company for field visits.




Certificate

CE Certification.jpg

Exhibition




Quality Inspection


Machining workshop

machining workshop.jpg

Packaging & Shipping



The cnc center is to be packed with plastic sheet for cleaning and damp proofing.Fasten the cnc machine into the wood case for safety and against clashing.Transport the wood case into the container.




Our Services
  • We provide 12 months warranty for the machine.
  • Consumable parts will be replaced free during the warranty.
  • Our engineer could provide technology support and training for you in your country, if necessary.
  • Our engineer could service for you 24 hours online, by Whatsapp,Wechat,QQ, or by cellphone etc.
