best sale furniture edge banding machine with round corner trimming
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
EV681
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Shenzhen
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets
Delivery Time:
Month
Packaging:
The cnc center is to be packed with plastic sheet for cleaning and damp proofing. Fasten the cnc machine into the wood case for safety and against clashing. Transport the wood case into the container.
Miss. Zou Doris



Send a Message to this Supplier

Product Details Company Profile

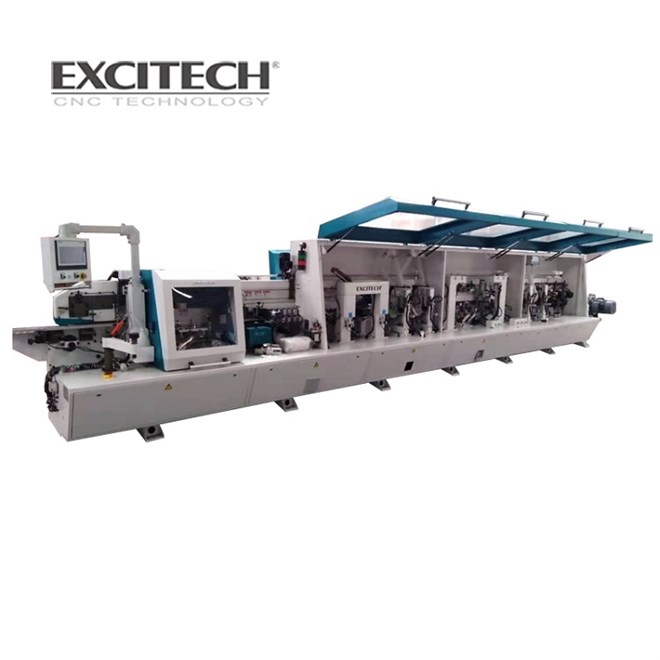

best sale furniture edge banding machine with round corner trimming


Product Description

Edge banding work is an important process in the manufacture of panel furniture. The quality of the edge banding directly affects the quality, price and grade of the product. By edge banding, it can improve the appearance quality of the furniture, avoid the corners damage and the veneer layer pick up or peel off, and at the same time, it can play the role of waterproofing, close the release of harmful gases and reduce deformation during the transportation and useing process. The raw materials used by the panel furniture manufacturers are mainly for particleboard, MDF and other wood-based panels, the selected edge strips are mainly PVC, polyester, melamine and wood strips. The structure of the edge banding machine mainly includes the fuselage, various processing components and control systems. The processing components mainly include: pre-milling, infrared heating, gluing with quick-melt, rough trimming, fine trimming, corner trimming, scraping, off-cut, spray cleaning agent, buffing with air cyliner controlled. Mainly used for edge sealing of panel furniture. It is characterized by automation, high efficiency, high precision and aesthetics. It has been widely used in panel furniture manufacturers.

Technical Parameter



Description

EV681

Workpiece length

Min.150mm

Input voltage

380v

Working piece width

Min.60mm

Input frequency

50HZ

Workpiece thickness

10~60mm

Output frequency

200HZ

Edge thickness

0.4~3mm

Power

27kw

Feed speed

20~26m/min

Machine size

10200*1050*1770mm

Minimum Workpiece Dimension

300*80mm or 150mm*150mm

Pre-milling tool

Φ100*H65mm*Φ

30 diamond tool



Part’s name

Brand

Inverter

Delta( TAIWAN)

PLC

Delta( TAIWAN)

Human-machine interface

Delta( TAIWAN)

Temperature control module

AUTONICS (KOREA)

Air switch

DELIXI

AC contactor

SHIHLIN (TAIWAN)

Intermediate relay

Weidmuller (Germany)

Travel switch

America HONEYWELL

Switch button

German SIMENS

High-speed motor

CHANGLONG( custom)

Pneumatic components

TAIWAN AirTAC, Japan SMC















Detailed Images



1.Spray realease agent

1. spray release agent.jpg

This device spray-applies a thin coat of release agent to the upper and lower edge area of the workpiece and prevents squeezed out glue from adhering to the workpiece.

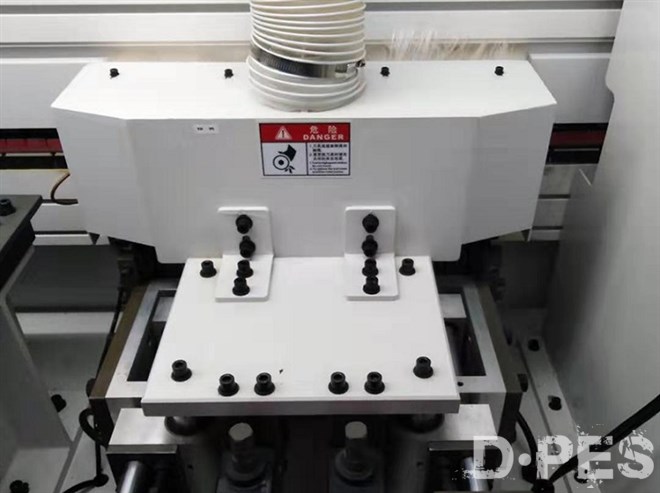

2. Pre-milling unit

1. Pre Milling.jpg

 It is equipped with diamond tools for better cut and longer use. This device removes the burr or uneveness on the edge of the workpiece, leaving a smooth surface for the edgebanding. It can profile units available upon request.

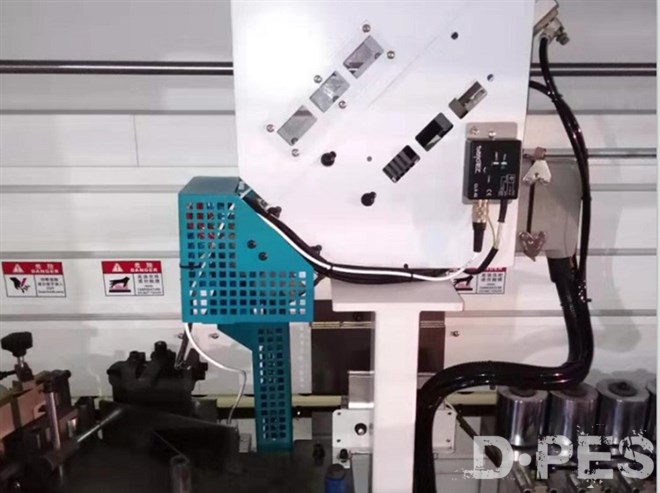

3. Gluing with quick-melt

 machine part 2.jpg



 The gluing unit features quick melt , reducing the thawing time of glue and guaranteeing perfect glue  quality on different edge materials.

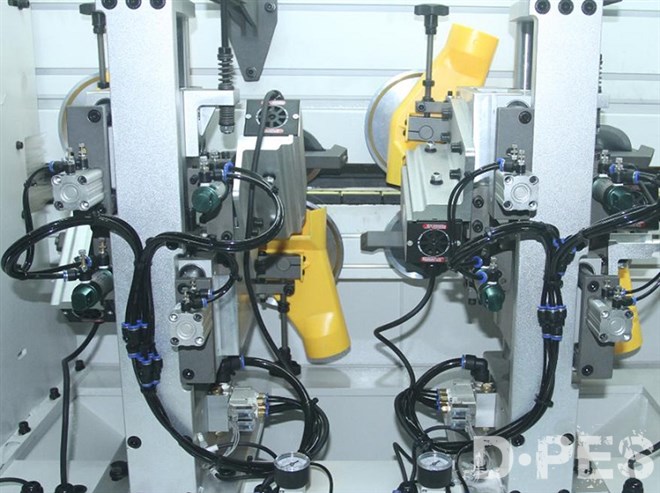

4. Corner Trimming

 corner trimming.jpg



It is equipped with 4 motors and works well with various edge thickness and invariably result in perfect round corner.



5.  R scraping

R scraping.jpg

No power scraping mechanism, for PVC/ABS edge banding within 3mm, R scraping edge is to remove the edge of the finishing unit in the processing edge band, so that the edge of the edge band More full and straight.



6. Flat scraping



flat scraping.jpg



Pneumatic control, the role is to scrape off the remaining glue left on the wood, reducing the glue line.

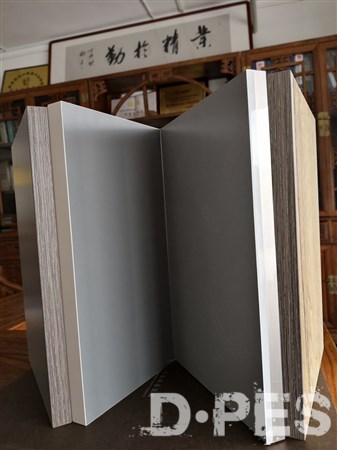

Sample

Application:

The raw materials used by the panel furniture manufacturers are mainly for particleboard, MDF and other wood-based panels, the selected edge strips are mainly PVC, polyester, melamine and wood strips.



 sample 2.jpg

sample 3.jpg
