RICOH MH5420 GEN5 Industrial Level High Resolution Print Head
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Ricoh GEN5
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 1700.00-1800.00 /
Shippment Port:
Shanghai Port
Payment Terms:
T/T,Other
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets
Delivery Time:
Quarter
Packaging:
Original Package, Made in Japan
Mr. Lee Leo



Send a Message to this Supplier

Product Details Company Profile

Characteristics

Single-pass 600dpi high-resolution printing
and support for multiple ink colors

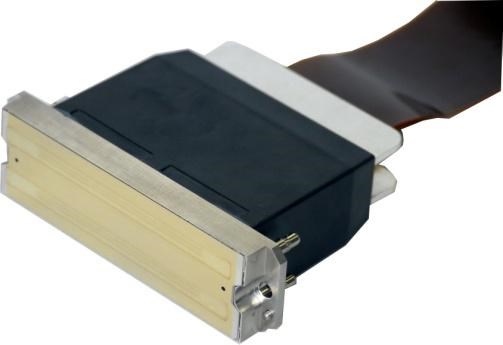

image:>Single-pass 600dpi high-resolution printing and support for multiple ink colors

With 1,280 nozzles configured in 4 x 150dpi rows, this head achieves high-resolution 600dpi printing. Additionally, the ink paths are isolated, enabling a single head to jet up to four ink colors.

Support for grey-scale

Achieves excellent gray-scale rendering with up to 4 scales per dot.

Excellent durability
and extended service life

Ricoh inkjet print heads are made of stainless steel. These heads are highly robust and offer excellent anti-corrosion properties for multiple inks, resulting in excellent durability and extended service life.

Support for different inks

With its built-in heater, these heads are capable of jetting high-viscosity inks. Additionally, the ink path is isolated from the actuator (piezo elements) , i.e. no ink contact.

Variable drop volume capability

The multi-drop capability allows the creation of a range of drop sizes enabling grey-scale printing.

Specifications / External dimensions

Inkjet head with support for multiple nozzles and colors

Choose from two-color or four-color models to suit your application.

image:Specifications / External dimensions

  MH5420 MH5440
Method Piston pusher with metallic diaphragm plate
Print Width 54.1 mm(2.1")
Number of nozzles 1,280 (4 × 320 channels), staggered
Nozzle spacing (4 color printing) 1/150"(0.1693 mm)
Nozzle spacing (Row to row distance) 0.55 mm
Nozzle spacing (Upper and lower swath distance) 11.81mm
Compatible ink UV, Solvent, Aqueous, Others.
Total printhead dimensions 89(W) × 69(D) × 24.51(H) mm (3.5" × 2.7" × 1.0") excluding cables & connectors
Weight 155g
Max.number of color inks 2 colors 4 colors
Operating temperature range Up to 60℃
Temperature control Integrated heater and thermistor
Jetting frequency Binary mode : 30kHz / Grey-scale mode : 20kHz
Drop volume Binary mode: 7pl / Grey-scale mode : 7-35pl *depending on the ink
Viscosity range 10-12 mPa•s
Surface tension 28-35mN/m
Grey-scale 4 levels
Total Length 248 mm (standard) including cables
Ink port Yes
Number of ink ports 2 × dual ports 4 × dual ports
Alignment pin direction Front (standard)
  • *Results obtained from continuous jetting test using standard Ricoh test ink.

image:Specifications / External dimensions



why choose us

Why Choose Us?

1.We are professional in digital printer, printing inks, and spare parts of printers.



2.We have professional engineers who have more than fifteen years experience to help you solve all kinds of questions.



3.We have good aftersale service, one year warranty, and deliver with good package and fast speed.



4.If you have any problems, our engineers can service oversea, and help you solve your questions.



5.We have a big market and a lot of customers all over the world.



6.Our annual sales are large, because we do it well.



Ttade Items





MOQ:  1
Package:  Package for Export
Delivery Terms:  By mail ( DHL )
Delivery Times:  After 100% payment was received
Payment Type:  T/T
Supply Ability:  500 units/mounth
Port:  Shanghai port
