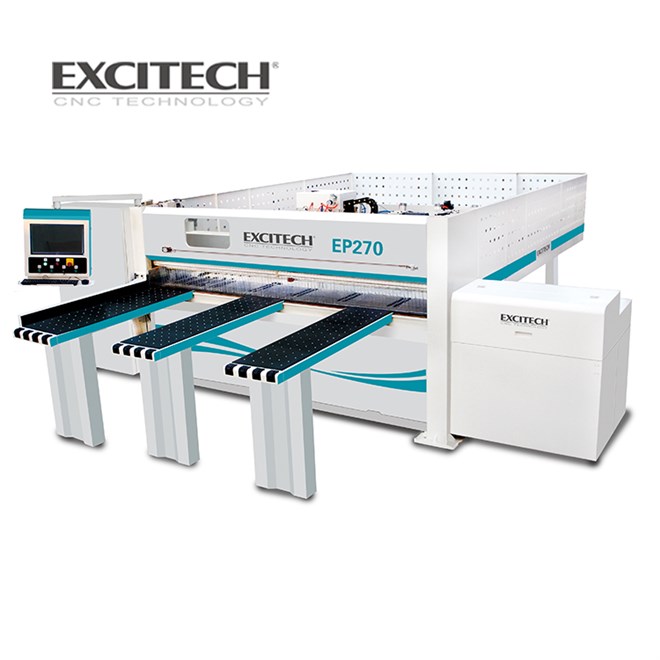

China manufacturer panel saw machine with CE approval EP270
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
EP270
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /Set
Shippment Port:
Qingdao Port
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets
Delivery Time:
Month
Packaging:
The cnc center is to be packed with plastic sheet for cleaning and damp proofing. Fasten the cnc machine into the wood case for safety and against clashing. Transport the wood case into the container.
Miss. Zou Doris



Send a Message to this Supplier

Product Details Company Profile

China manufacturer panel saw machine with CE approval EP270


Product Description

The machine is mainly used for all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood cutting.
Feature:

  • Precision helical rack and pinion drives ensure smooth and dynamic running even at the highest speed, at the same time reducing noise to the miniumum.
  • Main saw motor is linked to the saws by V-ribbed belt that results in the clean precision cut.
  • Cutting is automatically adjusted to the size of the panels according to the value set-dramatically reduces the cycle time.
  • Saw blades are easy to be loaded and unloaded in an efficient manner.
  • The main saw and the scoring saw with electronic lift feed on the linear guide that obtains lasting straight- line precision and rigidity and guarantees excellent cutting finish.



Technical Parameter



  Series

EP270

EP330

EP380

EP330( Rear Feeding)

Cutting Dimension

2700*2700*80/ 120 mm

3300*3300*80/ 120mm

3800*3800*80/120mm

3300*3300*80mm

Saw Carriage Speed

5-80m/min



Main Saw motor

15 / 18.5 kw

15 kw

Scoring Saw motor

2.2kw

 Main Saw Dimension

380*4.4*60mm / 450*4.8*60mm

380*4.4*60mm

Scoring Saw Dimension

180*4.4-5.4*45mm

Air consumption

150L/min

Loading speed



13m/min

Max Feed Size



3050*1550mm

Max Stack Height



630/1200 mm





Detailed Images

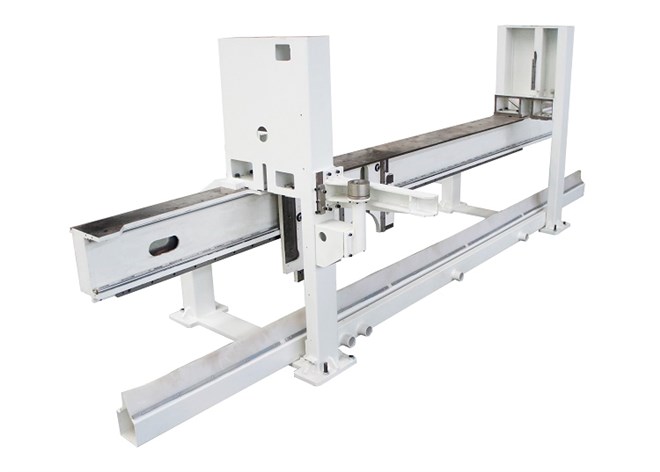

1. Heavy Frame

machine part 1.jpg

Heavy-duty frame ensures stable movement of the saw frame for precise sawing quality.

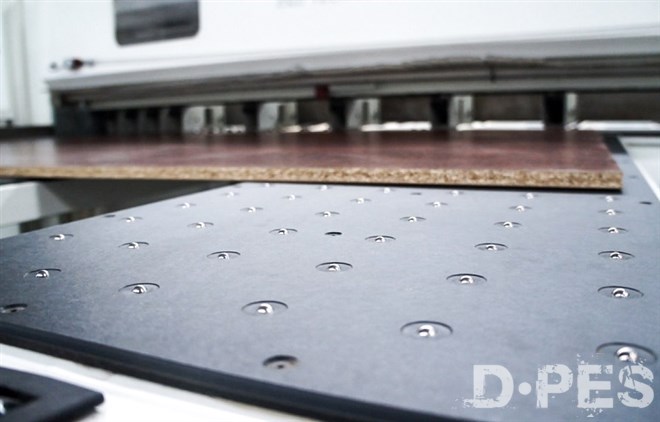

 2. Movable air table

machine part 2.jpg



Air table reduces the friction to the minumun to prevent chipping and wearing of the materials.



3. The clamps

 machine part 3.jpg

The clamps wrapped with rubber hold the material firmly and gently. Contact pressure adjustable to accommodate different material and deliver invariably perfect cut quality.





4. Saw carriage

machine part 4.jpg

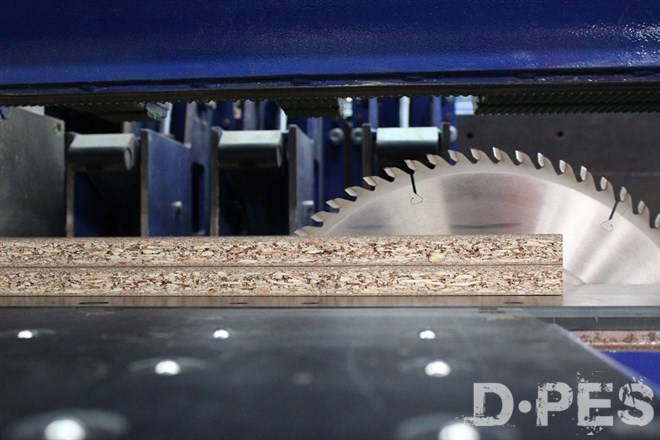

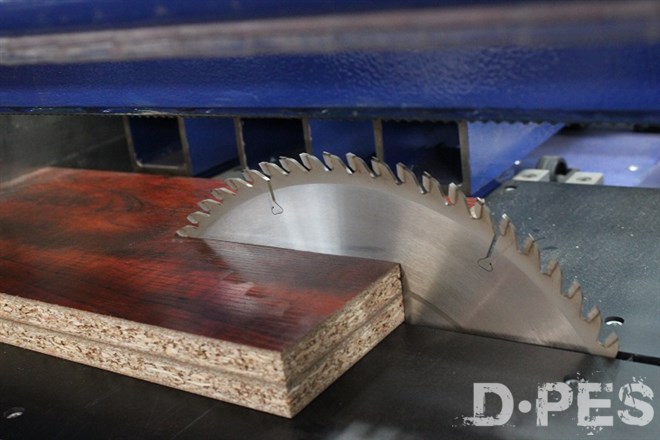

The precise and powerful movement of the servo motor driven saw carriage, along with 15kw mian saw motor guarantee a clean finish even when cutting multiple panels.

Sample

Application:

Mainly used for all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood cutting.





 sample 1.jpg

sample 2.jpg

sample 3.jpg



Company Information





Company introduction

  • EXCITECH is a company specializing in the development and manufacture of automated woodworking equipment. We are in the leading position in the field of non-metallic CNC in China. We focus on building intelligent unmanned factories in the furniture industry. Our products cover plate furniture production line equipment, full range of five-axis three-dimensional machining centers, CNC panel saws, boring and milling machining centers, machining centers and engraving machines of different specifications. Our machine are widely used in panel furniture, custom cabinet wardrobes, five-axis three-dimensional processing, solid wood furniture and other non-metal processing fields.
  • Our quality standard positioning is synchronized with Europe and the United States. The whole line adopts standard international brand parts, cooperates with advanced processing and assembly processes, and has strict process quality inspection. We are committed to providing users with stable and reliable equipment for long-term industrial use. Our machine are exported to more than 90 countries and regions, such as United States, Russia, Germany, the United Kingdom, Finland, Australia, Canada, Belgium,etc.
  • We are also one of the few manufacturers in China that can carry out the planning of professional intelligent factories and provide related equipment and software. We can
    provide a series of solutions for the production of panel cabinet wardrobes and integrate customization into large-scale production.
    Sincerely welcome to our company for field visits.




Exhibition




CE certificate

CE Certification.jpg



Quality Inspection




Machining workshop

machining workshop.jpg

 We have our own machining workshop, a total of 5 gantry five-sided milling, each special machine for special use.
Side arms, beams, Z-axis skateboards, machine beds are specially processed by different equipment to guarantee high precision of the machine.

Packaging & Shipping



The cnc center is to be packed with plastic sheet for cleaning and damp proofing.

Fasten the cnc machine into the wood case for safety and against clashing.

Transport the wood case into the container.




Our Services
  • We provide 12 months warranty for the machine.
  • Consumable parts will be replaced free during the warranty.
  • Our engineer could provide technology support and training for you in your country, if necessary.
  • Our engineer could service for you 24 hours online, by Whatsapp,Wechat,QQ, or by cellphone etc.
