Home >> Products >> Engraving Machine >> Mould Engraver >> China Maxicam 5 Axis A1212 T CNC Router for Wood Foam with Twin Table for Acrylic MDF Hard Wood Metal Milling Carving 3D Stereoscopic Working Machine

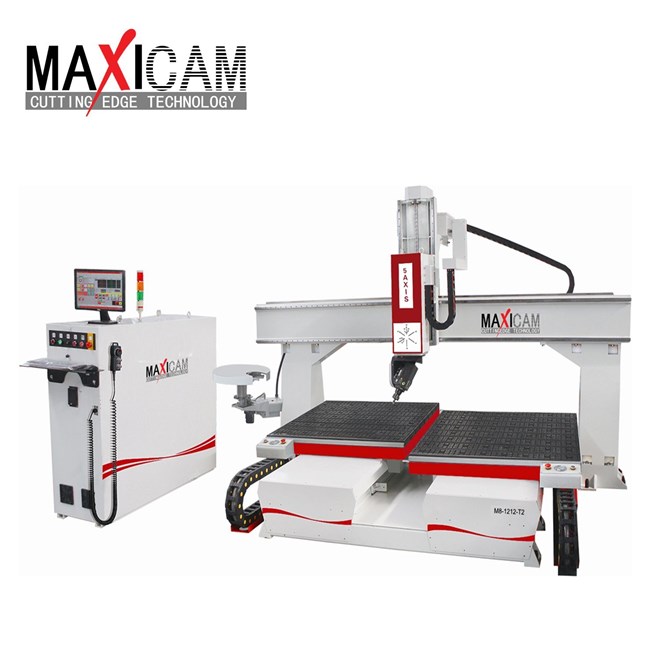

China Maxicam 5 Axis A1212 T CNC Router for Wood Foam with Twin Table for Acrylic MDF Hard Wood Metal Milling Carving 3D Stereoscopic Working Machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
M8-1212T
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 50000.00-0.00 /Set
Shippment Port:
qingdao
Payment Terms:
L/C ,D/A,D/P,T/T
Show Buyers your Ability to Supply:
Production Capacity:
50 Set/Sets
Delivery Time:
Month
Packaging:
Mrs. Maxicam Sofia



Send a Message to this Supplier

Product Details Company Profile

High Quality China Factory Supplier 5Axis CNC Machine Wood Router

Features:

  1. European OSAI control system, powerful and easy to operate, high precision.
  2. Z axis travel can increase to 1.5 meters, large format, suitable for large-scale three dimensional surface protection.
  3. Intelligent processing of cross-border protection.
  4. Diversified control can promise the processing speed, idling speed, cutting speed , greatly improving the quality of processed products and processing efficiency.
  5. All components adopt international famous brands.

Technical Parameters:

  1. Item   Description
    Model   M8-1212-T 5 axis cnc router
    Movement type   Movable table
    X ,Y,Z working area (mm)   2400*1200*900mm
    C travelling    ±213°
    A travelling   ±120°
    Beam spacing(mm)   4260
    Beam Height(mm)   2150
    Vacuum pump   Germany Becker pump
    Supplier for Double pendulum head   10.0 KW Italian HSD
    Range of speeds   22000 RPM/min
    Servo Motor brand   YASKAVA
    Table size (mm)   1200*2400
    Product fixed form   Vacuum table
    Tool magazine   8 positions Carousel Tool Storage
    Control system   OSAI
    Machine size    3600*4000*3500mm
    Total weight   12T
    Total Power(kw)   24KW
    Voltage   AC380V/60HZ
    Maximum lifting weights   20T
    File exchange   G code
    X,Y axis Maximum speed   45m/min
    Z,C axis Maximum speed   20m/min
    A axis Maximum speed   20m/min
    Guarantee time   One year of guatantee in case of non-human damage
    Option items:   Change the 3.0 KW single bag dust collector to 5.5        KW double bag,Original Alphacam software
    Application

    1. Wood furniture industry

    Doors; Cabinets; Tables; Chairs.

    Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

    2. Advertising industry

    Signage; Logo; Badges; Display board; Meeting sign board; Billboard

    Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

    3. Die industry

    A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

    4. Artwork and Decoration

    wood crafts; gift box; jewelry box

    5. Others

  1. Relief sculpture and 3D engraving and Cylindrical object.

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 25 working days after payment.

  1.

    After Sales Service

    Our Service:

    1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
    2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
    3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
    4, We offer 24 hours technical support by call, and email.
    5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
    6, We can record videos of operating the laser machine.
    7, Free training course in our factory.
    8.Machine will be adjusted before it is delivered, operation disk/CD was included.
