Standard Configuration:
1) 9.0KW HSD spindle
2) Rotary ATC system with 8 pcs tools
3) Germany Becker vacuum Pump: 4 KW, 140m³/h
4) Multi-drilling system: Italian HSD (vertical 9 + horizontal 4 + saw 2)
5) Schmalz Aluminum extrusion with movable Schmalz vacuum cups
6) Delta Inverter made in Taiwan
7) Yaskawa Servo system made in Japan
8) German Eisler Reducer Box
9) French Schneider Electronic Spare Parts
10) THK Linear Rail made in Japan
11) Two parts of working area controlled separately
12) Electronic safety mat device
13) Syntec control system
14) Type 3 software
Applications:
1) Furniture: Solid wood furniture, Solid wood door, Decorative materials, Cabinet doors, Computer tables, Mah-jong table, Panel furniture, Office furniture, Wooden sound box, Wooden kitchen utensils and so on.
2) This CNC Router also could be used to produce Non-metallic mold and Auto Styrofoam mold.
Suitable material:
MDF, Wood, Plexiglass, PVC panel, double-color sheet, Copper, Aluminum, Man-made marble, Crystal and so on.
Technical Parameters:
Item
|

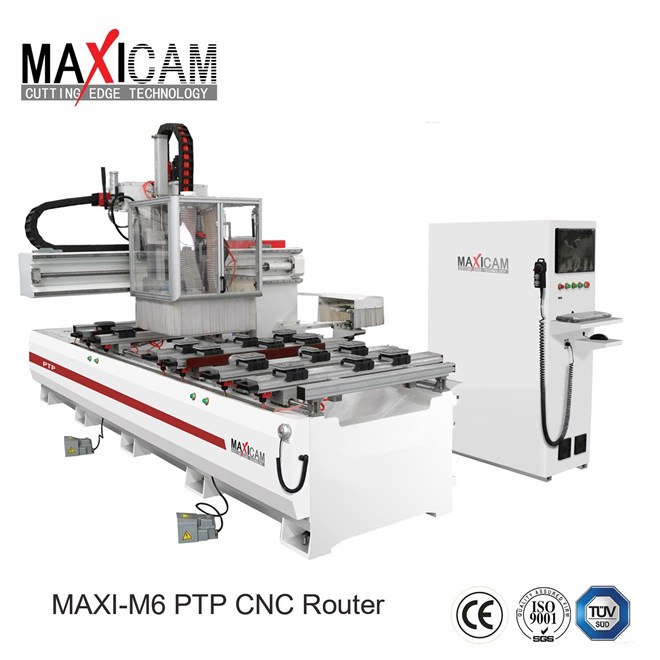

M6-1230D PTP WORK CENTER
|
Working area
|
1220*3100*80 mm
|
Travelling Size
|
1660*3500*250 mm
|
Transmission
|
X,Z ball screw, Y rack pinion
|
Table structure
|
Movable vacuum cup
|
Spindle
|
9.0 KW Italian HSD Spindle
|
Spindle speed
|
24000 RPM
|
Multi-drilling system
|
vertical 9+ horizontal 4 +saw 2
|
Speed
|
MAX travelling speed : 50000 mm/min
|
MAX working speed : 25000 mm/min
|
Driver and Motors
|
YASKAWA servo drivers and motors from Japan
|
Working voltage
|
AC380V/3PH/50Hz (Option : AC220V/3PH/50Hz )
|
Operating system
|
Syntec from Taiwan
|
Net weight
|
3000 KG
|
Gross weight
|
3200 KG
|
