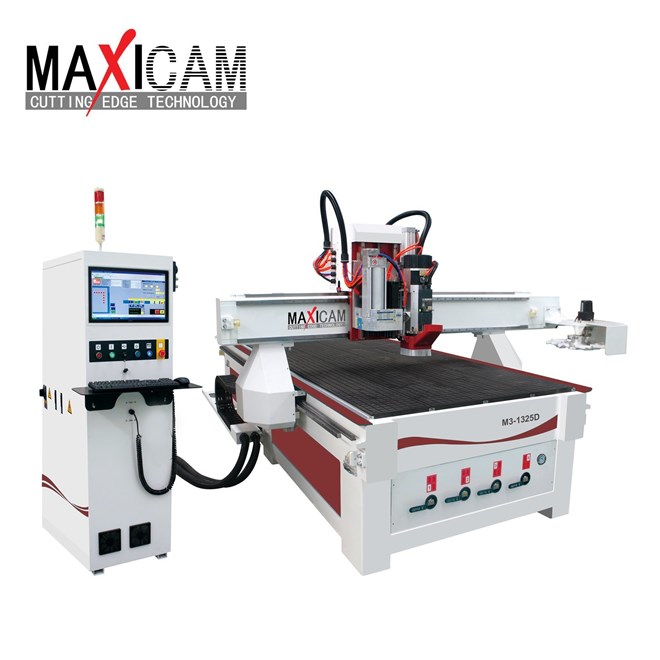

Maxicam Carousel Automatic CNC Router Atc with 12 Tools and Drill M3-1325D
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
M3-1325D
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 22000.00-0.00 /Set
Shippment Port:
qingdao
Payment Terms:
L/C ,D/A,D/P,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
500 Set/Sets
Delivery Time:
Month
Packaging:
Plywood Packing
Mrs. Maxicam Sofia



Send a Message to this Supplier

Product Details Company Profile

Standard Configuration:



1)         Working area: 1300mm*2500mm*200mm

2)         9.0 kw HSD spindle

3)         Vacuum table (Germany Becker vacuum pump)

4)         SYNTEC controller system

5)         Panasonic Servo drivers and motors

6)         DELTA inverter made in Taiwan

7)          Carousel 6 position tools magazine

8)         Original Type 3 software

9)         German Schneider Electronic Spare Parts

10)     Japanese OMRON Switch

11)     THK Linear guide made in Taiwan

12)     3PH 380V 50Z

13)     Plywood case package





Option items:

1)       Oil mist cooling system

2)       Dust collect system

3.0   KW single bag

5.5 KW single bag

3)       Extra tool holders

4)       Working area:  1500*3000*200 mm

                 2000*3000*200 mm

                 2000*4000*200 mm

5)       Z axis up to 300~400 mm



Applications:

1)       Woodworking: wood panel, three-dimensional wave board processing, handicraft fan window processing. Cutting, engraving, routing, drilling on cabinet doors, solid wood door, complex wood door, Paint-free door.

2)       Other Industry: make building models, wood mold, air wooden mold, propeller, automotive foam mold. Shaping three-dimensional surfaces such as violin, erhu musical instruments and so on

3)       Pattern carving, calligraphy tablet design and frame sculpture.



Technical parameters:

Item

MAXI-C 1325SE-T-V

MAXI-C 1530SE-T-V

MAXI-C 2030SE-T-V

Working area

1300*2500*200 mm

1500*3000*200 mm

2000*3000*200 mm

Table Size

1400*2900 mm

1900*3750 mm

2200*3750 mm

Transmission

XY with linear guide  Z with ball screw

Table structure

Vacuum table

Spindle

9.0 KW Italian HSD Spindle

Spindle speed

24000 RPM

Speed

MAX travelling speed : 45000 mm/min

MAX working speed : 20000 mm/min

Drive system

Panasonic servo drivers and motors

Working voltage

AC380V/3PH/50Hz (Option: AC220V/3PH/50Hz )

Operating system

Syntec from Taiwan

Net weight

1200 KG

1500 KG

2000 KG

Gross weight

1350 KG

1750 KG

2250 KG
