Cutting Grinder
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
0 Set/Sets
Place of Origin:
Min. Order:
020
FOB Price:
0.00-0.00 /
Shippment Port:
huang pu
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
0 Set/Sets
Delivery Time:
Week
Packaging:
450X350X340
Female. hu lixin



Send a Message to this Supplier

Product Details Company Profile

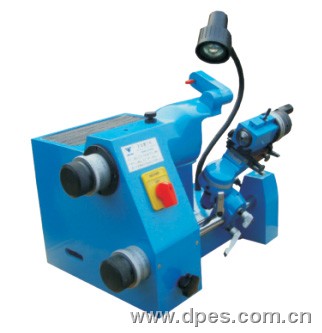

Omnipotent grinder ,is well designed with the development of carving industry. Mainly composed by the body, wheel, spindle, driver, micro feed ,the grinding wheel shaper and knife. Novel structure, attractive appearance, high precision, good performance, easy to use, easy maintenance.
Application:CNC Router, Mechanical engraving machine, Mold engraving machine and High-speed rotary knife head, side edge sharpening and edge cutter,high resolution for grinding.. This omnipotent grinding machine equipped with advanced apparatus . we supply the good quality products with the excellent service for all customres of cnc machine.

Name

SPEC.

Name

SPEC.

Grinding Wheel

Ø100XØ20X50

Grinding cone angle angle range

0°-180°

Spindle speed

5200r/min

Grinding negative angle range

0°-52°

diameter of spring clip

Ø3.175mm-16mm

Grinding angle range

0°-44°

Knife Vertical Travel

140mm

Motor

0.30KW 50Hz 220v
or 0.25KW 50Hz 380v

 knife holder column adjust travel guide

18mm

NW(kg)

50Kg

 spindle column travel adjust

6mm

Dimensions (l * w *h)

450X350X340
