Acrylic Laser Cutter SF1326
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
0 Set/Sets
Place of Origin:
Min. Order:
020
FOB Price:
USD 0.00-0.00 /Set
Shippment Port:
Qingdao, Shanghai
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
0 Set/Sets
Delivery Time:
Day
Packaging:
Fumigation Free Wooden Case
Mr. Liu Jincheng



Send a Message to this Supplier

Product Details Company Profile

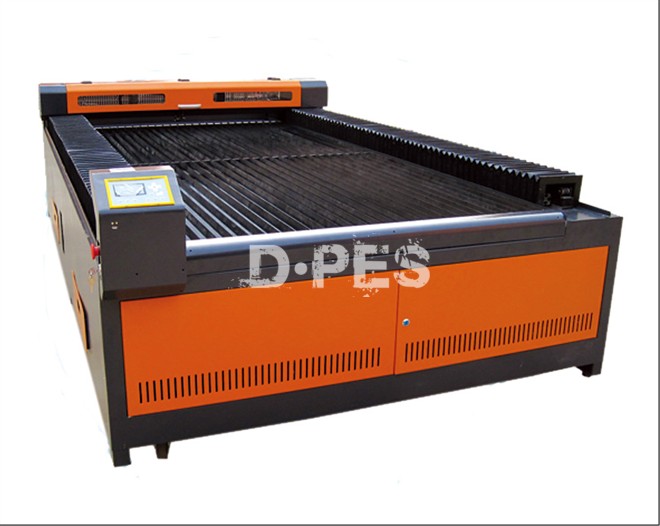

Acrylic Laser Cutter  SF1326


Laser cutting machine SF1326 is used specially for the nonmetal art crafts, gifts and the engraving of bamboo products. The mechanical structure is strong and stable, making the machine to run at high precision. The electrical ability is stable, the engraving speed is high, and the precision is high.
The machine can engrave beautiful pictures, peoples’ photos on the surface of many materials of different size of materials (marble, black or colored acrylic etc). It can also engrave many signs, marks. It is a machine with high cost performance.
Specifications:
Name:
Laser cutting machine SF1326
Processing area
1300mm*2600mm (4.3feet*8.7feet)
Laser power
60W,80W,100W,130W,150W
Laser type:
Co2 glass laser tube
Software:
Laser cut 5.3
Dimension:
3.2m*2m*1.3m
Engraving speed
1-6000mm/min
Cutting speed
1-1000mm/min
Cutting thickness
0-25mm acrylic (others determined by materials)
Resolution ratio
≤0.0125mm
Position system:
Red dot
Interface:
USB
Minimum shaping character
letter 0.5mm, Chinese 0.5mm
Support graphic format
DST, PLT, BMP, DXF
Gross power
1000W
Driving mode:
DC0.8A 24V stepper motor
Cooling mode:
Circulation water cooling
Working voltage:
AC220V/50HZ or 110V/60HZ or depend on customer
Operating temperature
0-45C
Operating humidity:
5-95%
Packing:
wooden box
Guarantee time:
1 year, laser tube 3 months
Option:
Rotary attachment for column materials
Operation:
Video to tell customer how to operate the machine
Applicable materials:
Non-metal materials such as acrylic, double color board, Plexiglas,
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, garment and leather, embroidery, decoration and upholster industry.
Characteristics:
1) Japanese technical engine running, making sure the products to run at high aped and high precision.
2) The original binding beeline lead rail, the mechanic is running well and stable.
3) Channel feeding, the feeding can be unlimited.
4) The body of the machine adopts high quality aluminum, professional model and has the specification of strong and not easy for distortion.
5) The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS chip adopts double face CPU.
