Characteristics of Stone CNC Engraving
1、The three axis adopt the strait line contrail, running stable and with high precision.
2、All the machine adopts the steel structure seamless jointing, the steel quality is good and without distortion, the back of the working table is steel board, the intention is big and the steel quality is good.
3、Invariable power main?axis engine, the cutting is strOng, the power is high.
4、Adopts the U disc embedded all offlioe control system, making the working more convenient and freely.

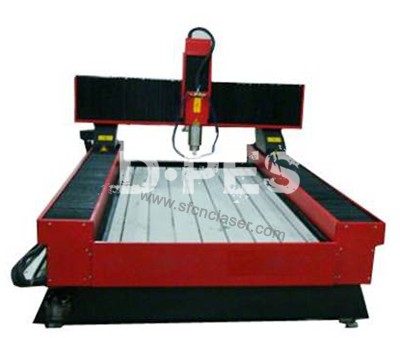

Specifications of SF-90 series marble CNC engraving machine
Engraving area: 900×1500mm
Z axis journey: 200mm
Table size: 1480×2200mm
The highest running speed: 20m/min
The highest engraving speed: 10m/min
Resolution: 0.005mm
Repeat orientation precision: The 0.05mm
Engraving code Code:*.u00*.mmg*.plt
Software environment: windows98/2000/xp
Power (without main axis): 2000w
Working voltage: AC380V/50Hz
Power of the main axis: 2.2-4.4KW（invariable power）
Main axis rotate speed: 0-24000rpm/min
Working method: Stepper
