Die Board Laser Cutting Machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
0 Set/Sets
Place of Origin:
Min. Order:
020
FOB Price:
USD 0.00-0.00 /Set
Shippment Port:
Qingdao,Shanghai,Tianjin
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
0 Set/Sets
Delivery Time:
Week
Packaging:
Fumigation Free Wooden Case
Mr. Liu Jincheng



Send a Message to this Supplier

Product Details Company Profile

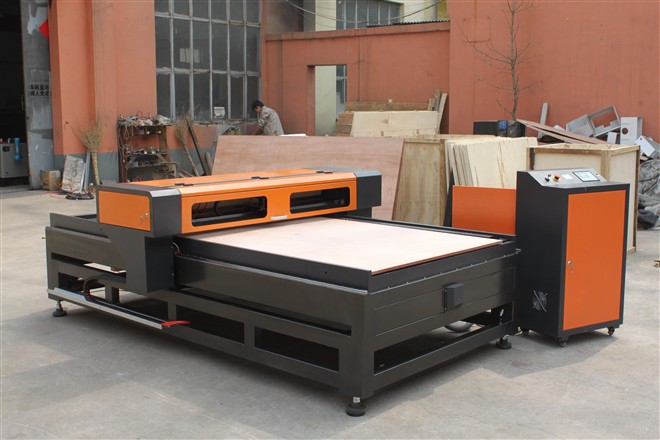

Laser die-board cutting machine SF-1225GSI

Laser die-board cutting machine  SF-1225GSI

1\The compact design of Mechanical structure, and the lathe bed have been tempering heat treated which is not easy to be deformed.

2\ The machine is equipped with imported ball screws and guide rail, panasonic servo motor, advanced control system, which can guarantee the high-speed and high-precision.

3\ Adopt core optical components of reliable international brands: GSI optical maser from UK \ Ⅱ-Ⅵ optical lens made in USA .

4\ The single-head cutting and flight optical path make the adjustment of optical path more sample and reliable.

5\ The thinkness of 15MM,18MM, 20MM die-board can be cut arbitrary width, such as 0.45, 0.71, 1.05, 1.42 etc. Kerf uniform, consistent from top to bottom seam. Once turned on , the machine can work without waiting time.

6\ Low cost and no gas consumption, only consume 7.5KW/H power.
Specification
Model:
SF1225-GSI
Working area:
1260 * 2460mm
Whole machine size:
3350 * 2220 * 1110mm
Laser-type:
Sealed  CO­2 laser tube
Laser power:
GSI 200W
Cooling mode:
Water-cooling and protection system
Cutting Speed
200mm-300mm
Resetting position accuracy
±0.05mm
Graphic  format  supported:
HPGL,PLT,AI,DXF
Controlling software:
DSP control system
Compatible software:
CoreDraw,AutoCAD,Photoshop
Driving system
Panasonic Servo
Working voltage
AC 220 ± 10%,50-60Hz
Operating temperature
0-45℃
Operating humidity
5-95℃
