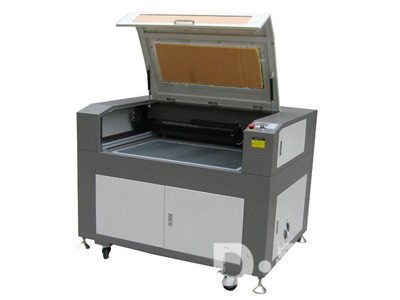

CX-9060 Laser Engraving Machine
Feature:
1, Adopted imported linear guide, more stable and higher accuracy
3, DSP control system, high speed, and convenient operation
4, Supply with CE and FDA certificate
Applicable material:
Wood, Bamboo, Marble, Organic glass, Acrylic, Crystal, Plastic, Garments, Paper, Leather, Rubber, Ceramic, Glass and other nonmetal materials
Applicable industry:
Advertisement, arts and crafts, leather, toys, garments, building models, computerized embroidery and clipping, packaging and paper industry
Technical Parameter:
|
Model number
|
CX-9060
|
|
Whole machine size
|
1,360 x 1090 x 1,070mm
|
|
Engraving size
|
900 x 600mm
|
|
Table
|
Honeycomb
or Blade shape
|
|
Laser tube
|
Sealed CO2 glass laser tube
|
|
Laser power
|
60W for engraving
80W for cutting
|
|
Working voltage
|
AC 110 - 220V ±10%, 50 - 60Hz
|
|
Total power
|
<1,000W
|
|
Engraving speed
|
0 - 60,000mm/min
|
|
Re-position accuracy
|
±0.05mm
|
|
Control
|
DSP system with USB interface
|
|
Operating temperature
|
0 - 45°C
|
|
Operating humidity
|
5 - 95%
|
|
Minimum shaping character
|
English 1 x 1mm
|
|
format
|
BMP, PLT, DST, DXF, and AI
|
|
Driving motor
|
Stepper
|
|
Cooling
|
Water cooling
|
|
Auxiliary equipment
|
Exhaust-fan, air-exhaust pipe
|
|
Software provided
|
Laser Cut 5.3
|
|
Control panel
|
English
|
|
Compatible software
|
CorelDraw / AutoCAD / Photoshop
|
|
Net Weight
|
220KG
|
