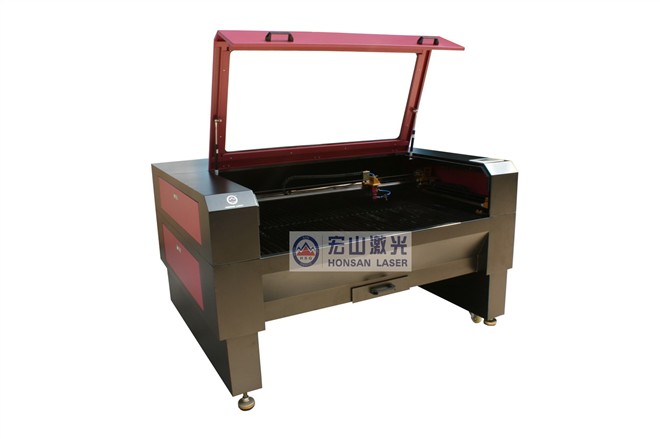

Acrylic/ Wood Laser Cutting Machine HS-Z1390
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 3500.00-5800.00 /
Shippment Port:
Guangzhou, Shenzhen
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
300 Set/Sets
Delivery Time:
Month
Packaging:
Seaworthy wooden case, with packaging PVC and foam inside.
Female. Gao Julia



Send a Message to this Supplier

Product Details Company Profile

Laser Cutting Machine for Acrylic/ MDF/ Plywood

Model number: HS-Z1390



Technical Parameter:
1) Application: cutting and engraving
2) Laser Type: CO2
3) Laser Power: 80W/ 100W/ 135W
4) Processing Area: 1300x900mm
5) Max. cutting speed: 24000mm/min
5) Max. engraving speed: 40000mm/min
6) Max. Cutting thickness(Acrylic): ≤25mm
7) Resolution Ratio: 0.0064mm
8) Min. Shaping Character: Chinese Character: 2x2mm, letter: 1x1mm
9) Location precision: <0.01mm
10) Supported formats: .PLT, .BMP, .DXF, .AI, .DST, .DWG, .LAS.
11) Power supply: AC110-220V±10%, 50Hz/ 60Hz
12) Gross Power: <1250W
13) Packing: Seaworthy wooden case
14) Packing dimension: 2040×1690×1370mm
15) N.W.:380KGS


Cutting ability(135W):
20-25mm thick acrylic
12mm thick MDF
15mm thick plywood



Features:



1) This machine has an open on the back to ensure the long materials to get through.


2) Our software machine software can start to work from the point where it stops in case of a sudden loss of power, to prevent the waste of a whole piece of expensive materials especially acrylic.

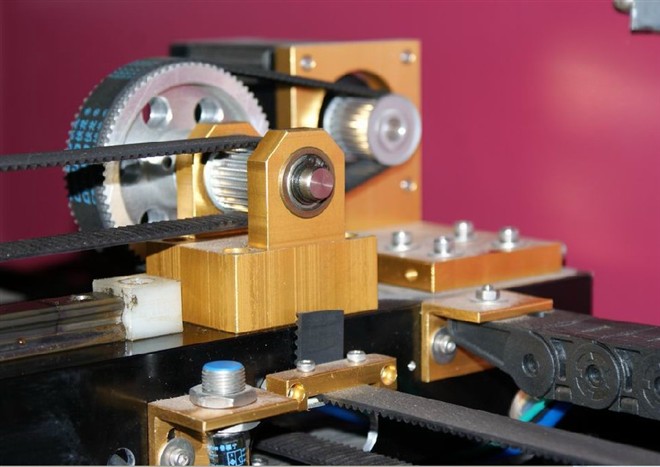

3) The Taiwan-made linear guide ensures the precise processing effect, which can make delicate and complicated designs on acrylic, wood and PVC and so on for the advertisement, handicraft industries etc.



4) Adopting the strip shape platform, which can bear heavier materials such as organic glass, wood and so on.



5) Original Singapore imported lens with molybdenum base, making the equipment produce smaller facula and stronger cutting force, greatly improving working efficiency and reducing cost.



6) USB cable to transfer data and offline DSP control system are both available.



7)The advantage of this series is to cut thicker materials in a high precision. We have a special fuction that pevents waste of acrylic and other expensive  materials where the machine will start at the same point in event of a power loss.



Applicable for precisely cutting nonmental materials such as acrylic, double-colored board, plywood, MDF, plastic etc. for advertising, decorating, crafts & gifts and model industries.

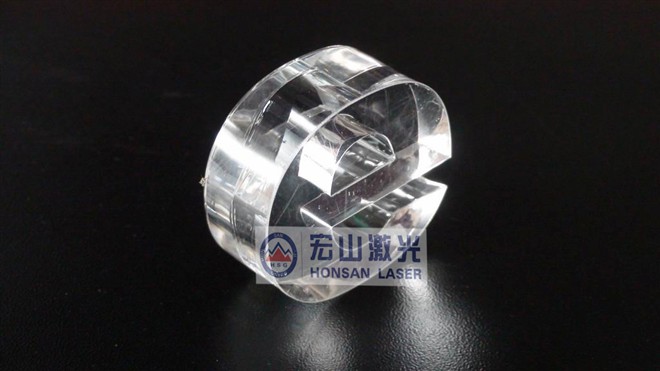

Samples display:

acrylic cutting 2.jpg IMG_1009.jpg  wood airplane  P24-01
