Home >> Products >> Engraving Machine >> Laser Engraver >> Laser Bed HS-B1325 (with servo motor and ballscrew guide)

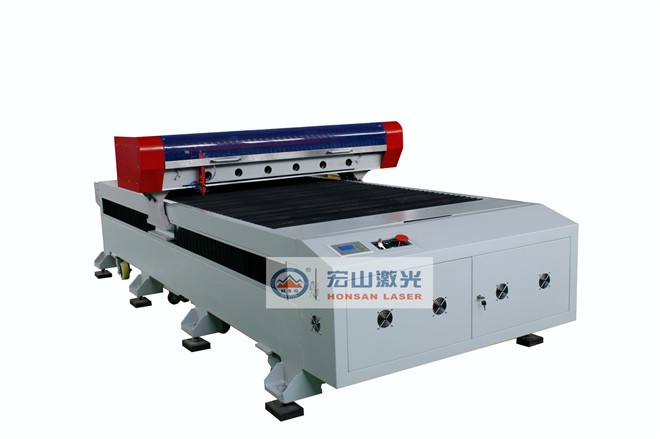

Laser Bed HS-B1325 (with servo motor and ballscrew guide)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 16500.00-21000.00 /
Shippment Port:
Guangzhou, Shenzhen
Payment Terms:
L/C
Show Buyers your Ability to Supply:
Production Capacity:
50 Set/Sets
Delivery Time:
Month
Packaging:
Seaworthy wooden case, with packaging film and protecting foam inside.
Female. Gao Julia



Send a Message to this Supplier

Product Details Company Profile

Laser Bed Model Number: HS-B1325 (with servo motor and ballscrew guide)





Servo motor: Japanese Panasonic, Power: X axis: 750W, Y axis: 1500W
Linear Guide:  Taiwan Hiwin, Width: X axis: 20mm, Y axis: 30mm
Ball screw: From Taiwan, Diameter: X axis: 25mm, Y axis: 40mm
Lens and mirrors: Lens: diameter: 27.94mm, focusing distance: 100mm; Mirrors: diameter: 30mm.
Laser bed: Heat treatment after welding
Gantry: Cast aluminium
Operating Temperature: 0°C-40°C
Operating Humidity: 5-95%
Graphic formats supported .PLT, .DST, .AI, .BMP, .DMG, .DXF.
Applicable materials: Cutting and engraving nonmetal materials such as ACRYLIC, PLYWOOD, MDF AND PLASTIC.



Equipped with imported servo motor and high quality ballscrew guide; the smoke-resistent function of the ballscrew guide protects the precise components such as guide rail, lens, mirrors, laser tube and laser power supply; adopting Z-axis auto-focus function enhances the moving performance and laser beam path can be adjusted more easily.

Suitable for signs, decoration and modeling industries, HS-B1325 can cut acrylic up to 25mm thick as well as wood and plastic etc.
