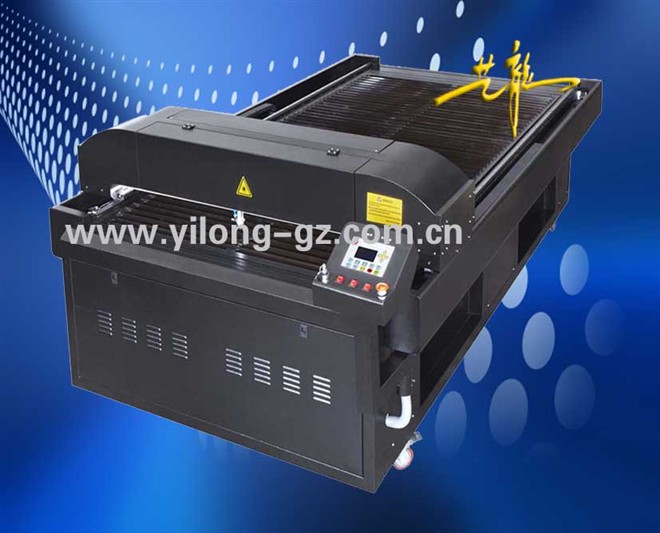

Arcylic Laser Cutting machine YL-2513
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
0.00-0.00 /
Shippment Port:
Payment Terms:
T/T,Western Union,MoneyGram,Other
Show Buyers your Ability to Supply:
Production Capacity:
1 Piece/Pieces
Delivery Time:
Day
Packaging:
Wooden box
Mr. Li Zhuorong



Send a Message to this Supplier

Supplier Details
Product Details Company Profile

lLaser cutting machine

Characteristic descriptio



Introduction

1. We adopt the internationally advanced DSP control technology,arrange high-speed cutting control software,own the buffer function in high-speed movement and uses USB interface to transmit data, can greatly impove working efficience.

2. Compared with domestic guide, this model used the imported AMT line which work as twice than others.

3. It uses professional YL step motor and driver system.

4. Mirror and lens are made of imported fibrous material, which can endure high temperature.



Applicable Industries

Applicable Materials

wood, paper, leather, cloth, organic glass, resin, acrylic, wollens, plastic, rubber, ceramic title, crystal, bowlder, bamboo etc nonmetal materials





Parameters of Products

Model

YL- 2513

Engraving Area

2500×1300mm

Engraving Speed

0-64000mm/min

Laser power

120w

Natural life of laser

3000hours

Laser wave length

10.6um

Resolution ratio

0.025mm

Minimum shaping character

Chinese character 2mm/ letter 1mm

Resetting positioning accuracy

±0.01mm

Power Supply

Ac220v±10%,50HZ

Gross Power

1250w

Operating Temperature

0°C-45°C

Operating humidity

5%-95%

Graphic Format Supported

BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF

Driver Type

Stepper Motor

Cooling

air and water cooling

Opearate System

Win98/Win2000/WinXP

Max Cutting thickness

25mm

Optional Configuration

Auto moving platform/Rotary device, Cooling machine

Net Weight

450KG

Dimension

2800×1800×1100mm
