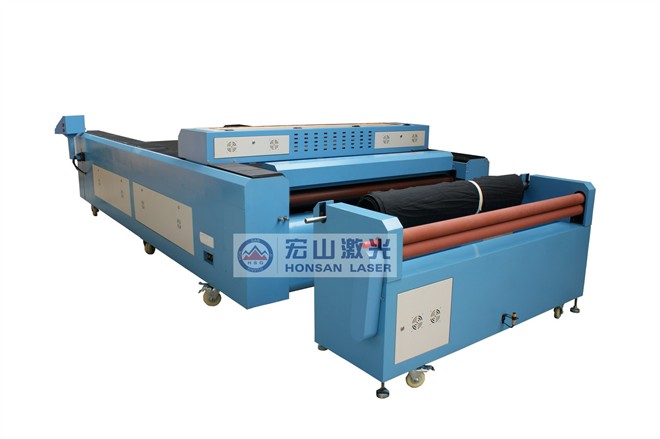

Auto-feeding laser cutting machine
Item No.: HS-R1630
Technical parameters:
1) Processing area: 1600 x 3000mm
2) Laser type: Chinese CO2 glass laser tube
3) Laser power: 80W, 100W, 135W (single-head and double-head available)
4) Max. cutting speed: 24000mm/min
5) Max. engraving speed: 40000mm/min
6) Min. Shaping character: Chinese character: 2 x 2mm, letter: 1 x 1mm
7) Resolution Ratio: 0.0064mm
8) Supported formats: .PLT, .BMP, .DXF, .AI, .DST, .DWG, .LAS.
9) Gross Power: <1250W
10) N.W.:2000KGS
Features:
1) CE certificated.
2) The auto-feeding system/ rotating work table enable the machine cut soft materials in rolls automatically, such as fabric, PU, leather and paper.
3) Accessories included: water chiller, air pump, exhaust blower and machine software.
4) Adoption of USB port and USB flash disk to transmit data, equipped with large-capacity internal memory (64MB).
5) Machine guarantee: one year.
Applications:
Applicable for garments, shoes, bags and luggage, computerized embroidery, template cutting, toys, furniture and so no.
