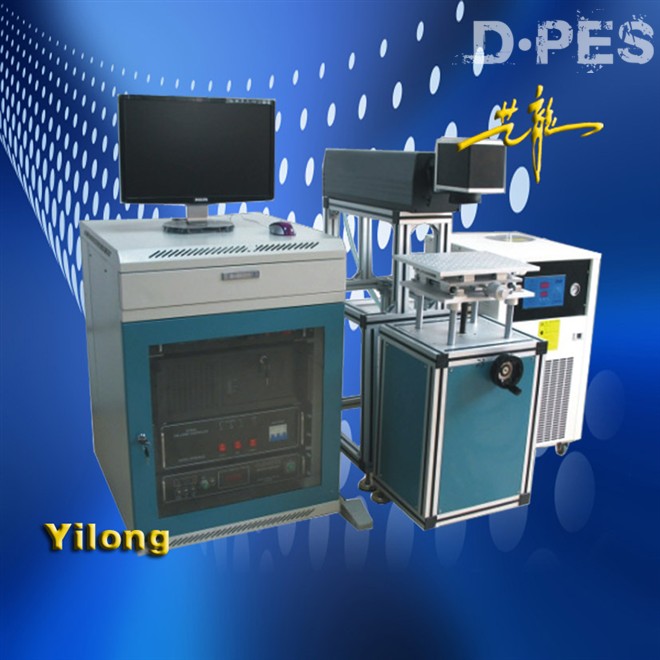

Metal YAG Laser marking machine YAG50
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
YAG50
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
0.00-0.00 /
Shippment Port:
Payment Terms:
T/T,Western Union,MoneyGram,Other
Show Buyers your Ability to Supply:
Production Capacity:
1 Set/Sets
Delivery Time:
one day
Packaging:
wooden box
Mr. Li Zhuorong



Send a Message to this Supplier

Supplier Details
Product Details Company Profile

App Typical application area

1.      The surface marking of metal and nonmetal or the finished product:Such as the stainless steel,aluminum alloy,copper,gold bullion,ceramics,synthetic material,rubber and leather,hardware &tools,faucet,clutch,bearing,bearing bush,gears, spiracle,piston ring,steel pipe,steel plate.

2.      Electronics:The laser printer of resistance,capacitance,inductance,crystal oscillator,printed ciruit board,integrated circuit,computer keyboard,electrical access card,mobile shell,wristwatch,button,various types of instruments and control panel.

3.      Supplies and the clothing industry:The markting of cosmetic,foodstuff,stationery,brand-name panels,product packaing box,color carton,avariety of paint products,cigarette,craft,and so on.







Parameters of Products





MODEL

YAG50

YAG75

YAG100

Laser type

continuous wave Q switch light pump Nd:YAG laser

Laser model

Multimode(can be exported according to customer demand)

Laser wavelength

1064nm

1064nm

1064nm

Maximum laser power

50w

75w

100w

Power stability

±3%

±3%

±3%

Switched laser frequency

1-50k HZ

1-50k HZ

1-50k HZ

Cooling method

Closed-lood water-cooled

Closed-lood water-cooled

Closed-lood water-cooled

Power requirements

380VAC.4KVA

380VAC.6KVA

380VAC.6KVA

Laser head dimensions

800×180×180nm

Scanning head

High-speed optical scanning galvanometer

Marking area

100mmX100mm(we can allocate other marking area according to customer demand)

Maximum marking speed

8000nm/s

Marking accuracy

0.05mm

Cooling capacity

5200W

Marking software

Specially designed laser marking software,with high power,simple menu mode of operation,can printing.A variety of Chinese and English fonts,PLT file,BMP file,serial number(automatic numbered sequentially serial number).barcode and two-dimensional code.Compliance software,the work environmentis Win98/xp/2000.
