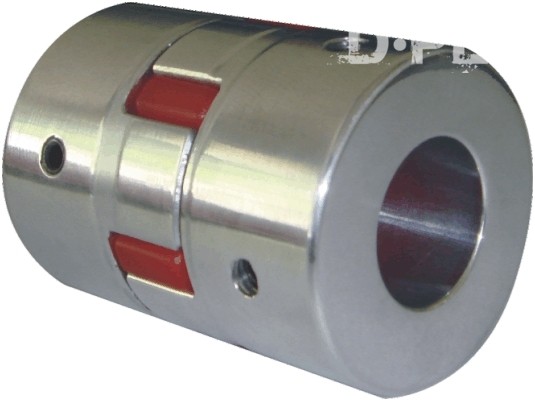

Jpa type elastic shaft coupling(fixed type)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
PA40
Select Payment and Shipping Terms:
Min. Order Quantity:
50 Piece/Pieces
Place of Origin:
Min. Order:
504
FOB Price:
0.00-0.00 /
Shippment Port:
SHENZHEN
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
500
Delivery Time:
Packaging:
35x28x20cm
Ms. liu sophie



Send a Message to this Supplier

Product Details Company Profile

Description of shaft coupling



Characteristics:

It abopts high-grade aluminum alloy materia
Intermediate elastomer connection(polyurethand)
Small size,light weight and big transmission torque

It can absorb vibration and compensate radial and angular and axle deviations

It is wear-resistant,anti-oil,anti-aging and electrically insulated

Excellent internal buffering

Convenient instillation



Size:

Type

Outer diameter

(mm)

Axis diameter(mm)

Length

La

W

M

Allowable

Rotational speed

Rated torque(NM)

Max

torque(NM)

Min

Max

Pa20

20

4

10

30

10

10

M4

18000

5.5

11

Pa25

25

4

12

30

10

10

M4

16000

8

16

Pa30

30

4

15

35

11

12

M4

13000

12

24

Pa40

40

10

24

55

20.5

14

M5

10000

17.5

35

Pa55

55

14

28

55

19.5

16

M6

8000

58

116

Pa65

65

20

38

90

54.5

18

M8

6800

160

320

Pa80

80

25

40

100

65

20

M10

6000

325

650
