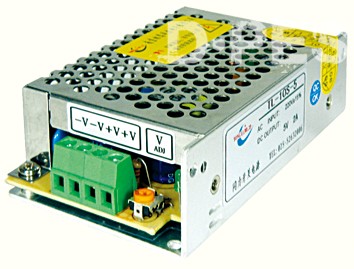

10W single output
Dimension: 100*58*31(mm)
Series number: TL AC/DC
EMI filter: Built – in EMI filter
Product guarantee : 100% full load burn – in test
Quality Assurance: 2 years warranty
Cooling method: Free air cooling convection
Installing method: vertical/horizontal
Input voltage range : 176~265VAC/220-370VDC
Input frequency : 47~63HZ
Inrush current : 40A /230VAC (cold start )
Isolation voltage : vin ~vount /1500VAC/min
vin ~FG /1500VAC/min
vount ~FG /500VAC/min
Leakage current : <0.5 mA /230VAC
Protections: short circuit (auto recovery) Over load 115%~150%( auto-recovery)
MTBF: MTBF ≥5×105h
Safety Standards: design meet GB4943.EN60950.UL60950
EMC Standards: design meet EN55022.Class A EN61000-3-2, EN61000-4-2,3,4,5,6,8,11
Line regulation : ≦0.5%
Output voltage adjustment range :±10%
Rise time :50ms (230V,full load)
Hold up time :20ms (230V,full load)
Working temperature: 0℃~45℃@100%,-10℃@80%,60℃@40%
Storage temperature: -20℃~85℃
Relative humidity: 20%RH~90%RH(non condensing)
Product Selection Table
Product model
|
Output voltage/output current
|
R&N
|
Typical efficient
|
TL-10S-3.3
|
3.3V/2A
|
80mV
|
69%
|
TL-10S-5
|
5V/2A
|
80mV
|
71%
|
TL-10S-9
|
9V/1.1A
|
80mV
|
73%
|
TL-10S-12
|
12V/0.8A
|
80mV
|
75%
|
TL-10S-24
|
24V/0.5A
|
100mV
|
78%
|
