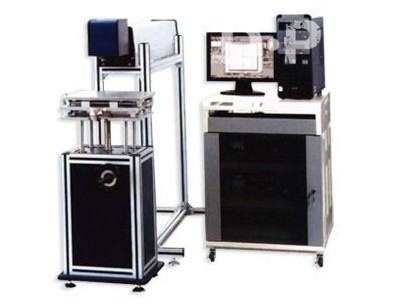

CX-DM-50W laser marking machine

features

1. With the high speed scanning resonance mirror to get high precision and high speed Thesoftware controlling system has the interface of Windows and comprises files output by software such as CorelDraw ,AutoCAD,and Photoshop.

2.It can support graphic file formats such as PLT,PCX,DXF, and BMP; and use fonts such as SHX AND TTF directly.

3. It also can mark the figures on the opposite side ,you can use the computer to design figures and characters randomly,so it is very flexible and convenient.

4.It won't waste printing materials ,so the the processing cost is low,laser marking is non-toxic,wear and without deformation or pollution .

5. You can choose revolving worktable which is suitable for marking round products.

Application

 It can be used in the industries of metal,alloy and oxide, ABS epoxy resin, printing and ink. It is widely used in the industries such as electron component, electric component, electric appliance,jewel ,glasses,hardware,car component,communication products,plastic products.

technical spesifications

1. Max laser power(w):50w

2.Laser wave-length(um)-1.064

3.Laser repetition frequency(kHz) <50

4.Standard marking area(mm):100×100 or 50×50,150×150, 200×200

5.Marking depth(mm):<0.3

6.Linear speed(mm/s):<7,000

7.MIn. character size9mm):0.3

8.Repetition accuracy (mm):0.003

9.Power consumed(kw):<5

10.Electrical source; 220 15% V AC, 50 Hz, 30A

11.The outline size of the system (L×W×H)standards by the real size

12.Optical system:1200×430×1200

13.Cooling system :380×630×740

14.Control system ;560×660×1000

15.Software:Windows XP +AHLASER marker system.
