Parameters
|
Model
|

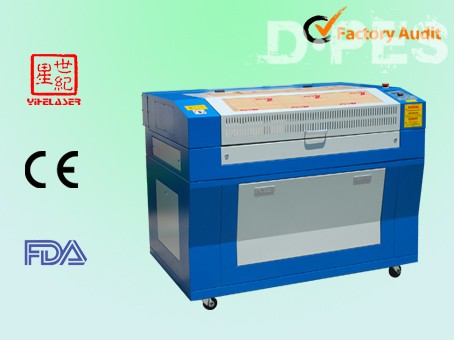

YH-G9060 Laser Engraving and Cutting Machine
|
|
Laser type
|
Sealed CO2 glass laser tube
|
|
Laser power
|
60W/80W
|
|
Engraving area
|
910×545mm
|
|
Cutting area
|
950×545mm
|
|
Appearance size
|
1430×1100×990mm
|
|
Engraving speed
|
0~1000mm/s
|
|
Cutting speed
|
0~300mm/s
|
|
Cutting thickness
|
0~20mm
|
|
Positioning precision
|
±0.01mm
|
|
Characters
|
1.5mm English letter
|
|
Format support
|
AI,BMP,PLT,DXF,DST etc
|
|
Power supply
|
AC220V±5%/50~60HZ
|
|
Power of machine
|
≤1000W
|
Features
1.Professional design ideas , customized for the users in different industries , elegant appearance and practical .
2.Professional moving control design , adopt advance three-phase stepping motor and good tansmission system , high speed and precision .
3.Complete function , safe and stable , exclusive no water warning and automatic protection system , to protect the working life of the laser tube effectively .The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best .
4.Electronic control lift platform , easy to feed front and back , easy and flexible to operate , can engrave materials with different heights .
5.Adopt the aviation light path system , imported linear guide rail , to guarantee the smoothness of the light knife moving and high engraving precision .
6.Red light positioning system realizes the high positioning without laser .
7.(Optional)Auxiliary rotary device : process the cylinder object such as cup , brush pot , musical instrument and breakthrough the engraving limit of 2-dimension.
Applicable materials

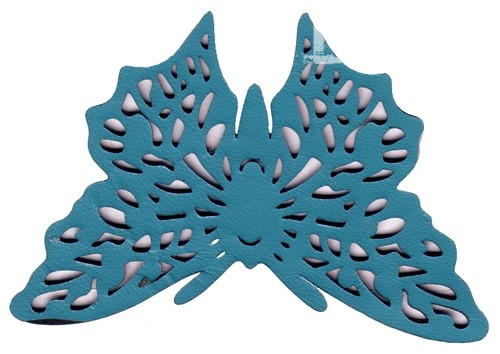

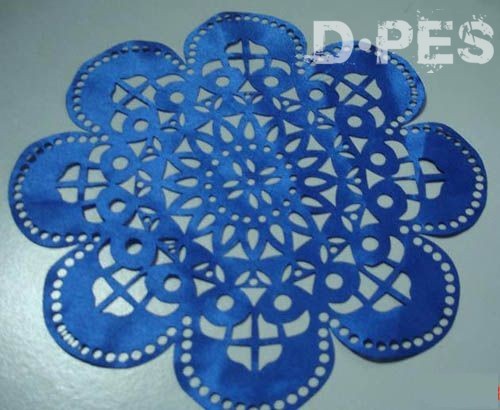

Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.
Applicable industries
1. Packing printing: paper carton, knitting bag, handbag, rubber board for printing
2. Advertisement: acrylic cutting, label making, double-colored board engraving..
3. Art and gift: wood, bamboo, image, ornament, prizes engraving.
4. Leather and garment: leather, leatheroid, garment embroidery and sampling
5. Others: sample, marking, model-making, surface drawing, decoration etc.
Service Supported
1.One year guarantee for the whole set of machines, not including normal replacement of wearing parts.
2. 24 hours technical support by email or calling. When it is necessary, we will send technician to the customer side to solve the problem.
3. User-friendly English manual and CD for machine using and maintaining.
4. Free lifetime upgrading of self-developed English software.
