Parametres
|
Model
|

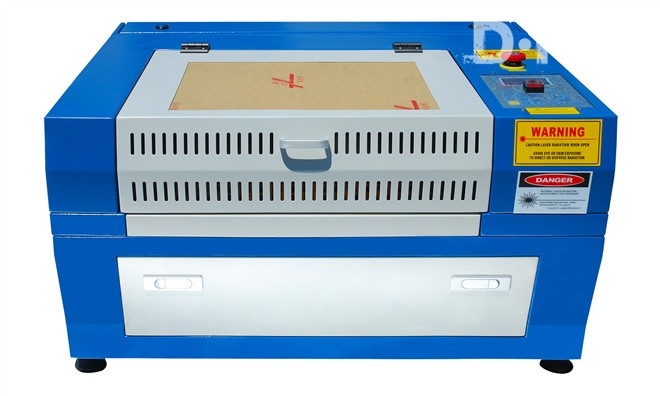

YH-G5030 Laser Engraving and Cutting Machine
|
|
Laser type
|
Sealed CO2 glass laser tube
|
|
Laser power
|
40W/50W
|
|
Engraving area
|
430×300mm
|
|
Cutting area
|
447×300mm
|
|
Appearance size
|
800×630×420mm
|
|
Engraving speed
|
0~1200mm/s
|
|
Cutting speed
|
0~300mm/s
|
|
Cutting thickness
|
0~6mm
|
|
Positioning precision
|
±0.01mm
|
|
Characters
|
1.0mm English letter
|
|
Format support
|
AI,BMP,PLT,DXF,DST etc
|
|
Power supply
|
AC220V±5%/50~60HZ
|
|
Power of machine
|
≤500W
|
Features
1. YH-G5030 is an economical laser engraving machine adopted high precision.
2. It's produced with small volume and light weight, easy for carrying, saving work space.
3. Designed for small gifts and crafts, and used for engraving stamps with professionally clamp.
4. Use the rotary device to engrave the cylinder object and break two-dimension limit.
5. It is our minimum laser machine with high stability.
Applicable materials:
Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.
Applicable industries:
1. Packing printing: paper carton, knitting bag, handbag, rubber board for printing
2. Advertisement: acrylic cutting, label making, double-colored board engraving..
3. Art and gift: wood, bamboo, image, ornament, prizes engraving.
4. Leather and garment: leather, leatheroid, garment embroidery and sampling
5. Others: sample, marking, model-making, surface drawing, decoration etc.
Service Supported
1.One year guarantee for the whole set of machines, not including normal replacement of wearing parts.
2. 24 hours technical support by email or calling. When it is necessary, we will send technician to the customer side to solve the problem.
3. User-friendly English manual and CD for machine using and maintaining.
4. Free lifetime upgrading of self-developed English software.
