Parameters
|
Model
|

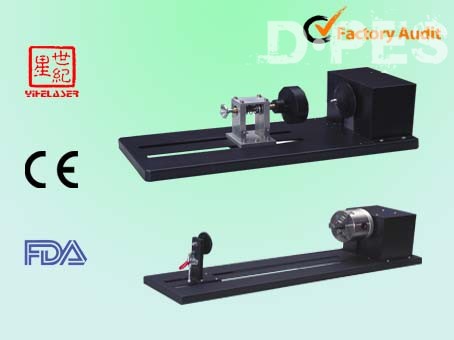

Big Rotary Device
|
Small Rotary Device
|
|
Min diameter
|
10mm
|
10mm
|
|
Inside diameter
|
10~90mm
|
10~70mm
|
|
Outside diameter
|
200mm
|
130mm
|
|
Max length of materials
|
450mm
|
270mm
|
Features
1. It features small size and practical, specially used for processing the cylinder or irregular objects such as cup, brush pen, brush pot, musical instrument etc.
2. Process the cylinder object and break through the engraving limit of 2-dimenision
3. Big rotary device is used for model YH-G8050, YH-G9060, YH-G1290, YH-G1490, YH-G1612, YH-G1616.
4. Small rotary device is used for YH-G5030
Applicable materials:
Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.
Applicable industries:
1. Packing printing: paper carton, knitting bag, handbag, rubber board for printing
2. Advertisement: acrylic cutting, label making, double-colored board engraving..
3. Art and gift: wood, bamboo, image, ornament, prizes engraving.
4. Leather and garment: leather, leatheroid, garment embroidery and sampling
5. Others: sample, marking, model-making, surface drawing, decoration etc.
Service Supported
1.One year guarantee for the whole set of machines, not including normal replacement of wearing parts.
2. 24 hours technical support by email or calling. When it is necessary, we will send technician to the customer side to solve the problem.
3. User-friendly English manual and CD for machine using and maintaining.
4. Free lifetime upgrading of self-developed English software.
Samples
