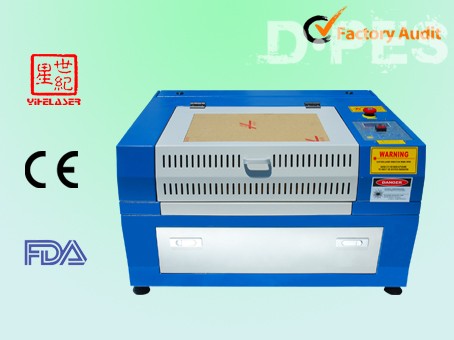

YH-G5030 Laser engraving machine/Laser cutting machine(CE&FDA)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
YH-G5030
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Piece/Pieces
Place of Origin:
Min. Order:
14
FOB Price:
USD 1.00-3000.00 /Piece
Shippment Port:
TIANJIN
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
100 Piece/Pieces
Delivery Time:
Month
Packaging:
PLYWOOD
Ms. zhao wenhui



Send a Message to this Supplier

Product Details Company Profile

YH-G5030 Laser engraving and cuting machine



Technical parameters:

Model

YH-G5030

Laser type

Sealed CO2 laser tube

Laser power

50W

Engraving area

430mm*300mm

Cutting area

447mm*300mm

Appearance size

800mm*630mm*420mm

Engraving speed

0-800mm/s

Cutting speed

0-200mm/s

Cutting thickness

0-6mm

Characters

1.0mm English letter, 1.5mm Chinese character

Positioning precision

±0.01mm

Electric lift platform

Adjustable height of 130mm

Format support

AI,BMP,PLT,DXF,DST etc

Power supply

AC220V±5% / 50HZ-60HZ or AC380V

Product features:

· Professional design ideas, customized for the users in different industries , elegant appearance and practical .

· Professional moving control design , adopt advance three-phase stepping motor and good transmission system , high speed and precision .

· Complete function, safe and stable, exclusive no water warning and automatic protection system, to protect the working life of the laser tube effectively .The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.

· Electronic control lift platform, easy to feed front and back, easy and flexible to operate, can engrave materials with different heights.

· Adopt the aviation light path system, imported linear guide rail, to guarantee the smoothness of the light knife moving and high engraving precision.

· Red light positioning system realizes the high positioning without laser.

· (Optional)Auxiliary rotary device: process the cylinder object such as cup, brush pot, musical instrument and breakthrough the engraving limit of 2-dimension.

Applicable materials:



Wood , ware , paper , marble , cloth , epoxy resin , density board , double-colored board , leather , plastic , acrylic , rubber , ceramic tile , crystal , onyx , bamboo ware and other non-metal materials .



Applicable industries:

· Packing printing:paper carton,knitting bag,handbag,rubber board for printing.

· Advertisement: acrylic cutting,label making,double-colored board engraving.

· Art and gift: wood,bamboo,image,aonament,prize's engraving.

· Leather and garment: leather,leatheroid,garment embroidery and sample.

· Others: sample,marking,model-makin,surface drawing,decoration etc.
