YH-G9060 Sealed CO2 Laser Engraving and Cutting Machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
YH-G9060
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets not mention
Place of Origin:
Min. Order:
120
FOB Price:
USD 2000.00-5000.00 /Set
Shippment Port:
Shanghai, Tianjin, Qingdao and other Chinese Main Port
Payment Terms:
T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
50 Set/Sets
Delivery Time:
Month
Packaging:
EXPORT STANDARD WOODEN CASE
Ms. zhao wenhui



Send a Message to this Supplier

Product Details Company Profile

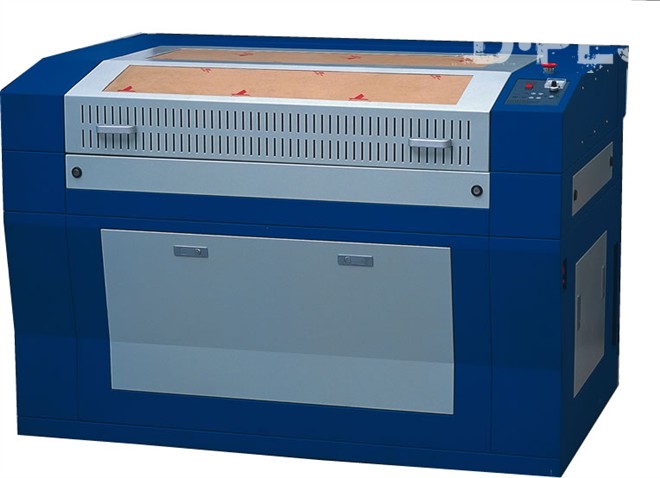

YH-G9060 Laser Engraving Cutting Machine



PRODUCT FEATURES:

  • Professional design ideas, customized for the users in different industries , elegant appearance and practical .
  • Professional moving control design , adopt advance three-phase stepping motor and good transmission system , high speed and precision .
  • Complete function, safe and stable, exclusive no water warning and automatic protection system, to protect the working life of the laser tube effectively .The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
  • Electronic control lift platform, easy to feed front and back, easy and flexible to operate, can engrave materials with different heights.
  • Adopt the aviation light path system, imported linear guide rail, to guarantee the smoothness of the light knife moving and high engraving precision.
  • Red light positioning system realizes the high positioning without laser.
  • (Optional)Auxiliary rotary device: process the cylinder object such as cup, brush pot, musical instrument and breakthrough the engraving limit of 2-dimension.



TECHNICAL PARAMETERS:

  • Laser power: 60W/80W (optional)
  • Size of platform: 1000x600mm
  • Engraving area: 910x545mm
  • Cutting area: 950x545mm
  • Appearance size: 1430x1100x990mm
  • Engraving speed: 0-300mm/s
  • Cutting speed: ≤0-1000mm/s
  • Cutting thickness: ≤20mm
  • Positioning precision: more or less 0.01mm
  • Support file format: AI.BMP.PLT.DXF.DST
  • Minimum shaping character: English Letters:1.5mm
  • Power of machine: ≤1000W
  • Electric lift platform: Adjustable height:350mm
  • Auxiliary rotary device: Optional
  • Structure of machine: Detachable
  • Power supply: 220V±5% /  50Hz~60Hz



APPLICABLE MATERIALS

Wood , ware , paper , marble , cloth , epoxy resin , density board , double-colored board , leather , plastic , acrylic , rubber , ceramic tile , crystal , onyx , bamboo ware and other non-metal materials .



PROCESS CHARACTERS

It features fast, high precision, noise free; poison free, pollution free, environment protection, etc. Engraving with high precision in the model and toy industries , a best option for the manual engraving and cutting , non-touching and no need to fix ; when cutting acrylic , the cutting edge is smooth and no need to polish , process soft materials freely .
