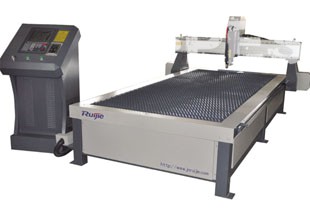

Industry Plasma Cutter RF1325A
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
RF1325A
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 1.00-9999.00 /Set
Shippment Port:
According to the demand of the customers
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
Wooden case
Mrs. Serena Lee



Send a Message to this Supplier

Product Details Company Profile

1.     Welded lathe bed of thick-wall profiled steel, artificial prescription, more solid and stable.

2.     Reasonable platform design, 10mm thickness steel plates fixed on the table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame.

3.     The level difference of whole double-decked platform remains in 0-1.5mm.

4.     Reasonable material inclined leakage design. All finished working pieces and fragments slide into both sides of tunnel for safe and convenient collection.

5.     Panasonic servo motor, Taiwan servo reducer device and high accuracy rack gear transmission.

6.     Lower noises, stable and accurate coordinate movement.

7.     Start control system made in Sino-US joint venture and Germany Design Software FastCAM with auto material saving function

8.     American Cut-Maste plasma power supply (40A/120A/200A) together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma gun and working piece automatically in order to ensure cutting accuracy.

9.     Best choice for all kinds of different thickness material and heterotypic sheet cutting.

 Applications:

Parts cutting, thickness material and heterotypic sheet cutting.

Model

Parameter

1325A

1530A

Processing Materials

Iron, aluminum, galvanized sheet, white steel plate, titanium plate

Working Area

1300mm × 2500mm

1500mm × 3000mm

Cutting Thickness

(40A) 0.5-10mm

(40A)0.5-10mm

(120A)3-16mm

(120A)3-16mm

(200A)3-25mm

(200A)3-25mm

Cutting Speed

0-8000mm/min

0-8000mm/min

Moving Speed

0-50000mm/min

0-50000mm/min

Power

8.5KW-10.5KW

8.5KW-10.5KW
