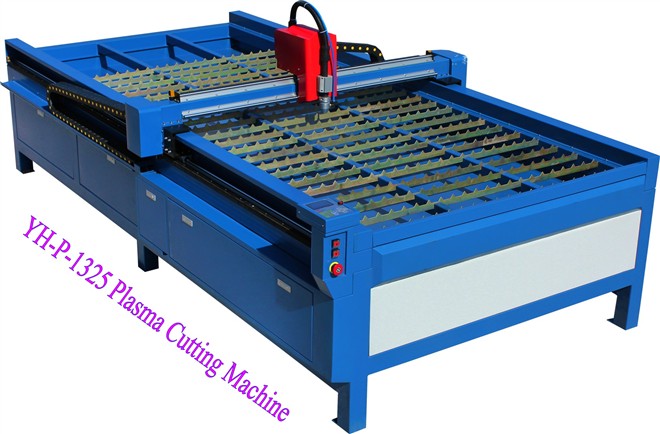

1300*2500mm metal sheet cutting machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
YH-P1325
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Piece/Pieces
Place of Origin:
Min. Order:
14
FOB Price:
USD 2000.00-20000.00 /Piece
Shippment Port:
TIANJIN or SHANGHAI
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
50 Piece/Pieces
Delivery Time:
Month
Packaging:
plywood carton(free fumigating)
Ms. zhao wenhui



Send a Message to this Supplier

Product Details Company Profile



plasma cutting machines

Technical parameters about 1325

Model

    Plasma -1325



Dimension

2865mm×1885mm×1200mm



Cutting area

1250mm×2450mm



Platform size

2707mm×1454mm



Motor

 Stepping driver

Plasma supply

Domestic plasma supplymax :60A

Cutting way

HF & HP cutting way.

Applicable materials

Aluminum, copper, stainless steel, titanium etc metal board.

Working life of

Cutting head &electrode

Depends on cutting times about 1000 times.

Cutting thickness  (mm) (minbest max)

0.5-3-6 (mm)

Cutting width

≤1mm

Acceleration speed

20000mm/min

Cutting precision

≤0.05mm

Repeat precision

≤0.05mm

Performance

Offline.

Connecting way

USB port

Memory

32M

Compatible

AutoCAD, CorelDraw output directly.

Control panel

LED control panel

structure

X Y Z linear guide-rail, sliders etc.

Driving system

Three phase AC380V50Hz

Power supply

≤9KW

Fuse

4pcs /30A

Pressure data

65-75psi/4.5-5.2bar

MAX-input pressure :

125 psi/8.6 bar

Max-cutting speed

1200mm/min

Accessories

Plasma power supply, air compressor, air filter, USB data wire, software CD, operation manual.



Product features:

1. Advanced DSP numerical control system specialized for plasma, whole offline working, easy for operation.

2. High quality plasma power, high quality driver guarantees the upright of cutting edge with higher precision

3. The arising arc fire head can be adjusted 35mm up and down, adapt to cut in different thickness metal board.

4. Vector graphics for CorelDraw, AutoCAD can be output directly, no need to change the format

5. High efficiency in cutting aluminum, copper and other metal materials.

6. Strong power can cut 0.5mm to 24mm metal board.



Applicable materials:

Iron plate, Galvanized sheet, Aluminum sheet, Stainless steel, Titanium sheet, Copper and other metal sheet.
