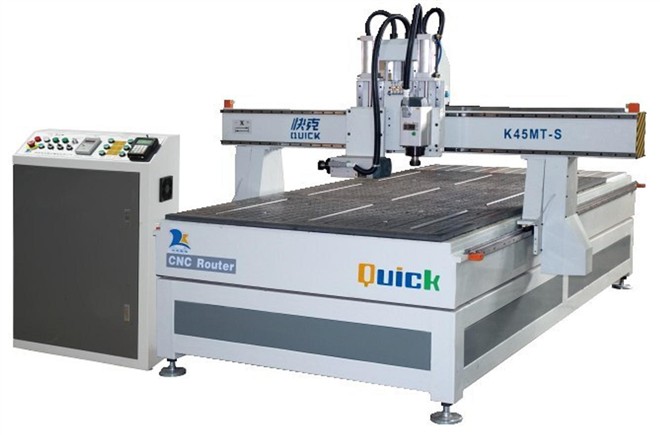

K45MT-S Woodworking Wood Engraving cutting CNC ROUTER
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
K45MT-S
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /Set
Shippment Port:
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
0 Set/Sets
Delivery Time:
Packaging:
Miss. Bella Wang



Send a Message to this Supplier

Product Details Company Profile

K45MT-S Series

Technical Parameter:

Model

K45MT-S

X-Y-Z axis working area

1,300 x 2,500 x 200mm

Machine size

2,150 x 3,150mm

Resolutions

0.025mm

X-Y movement

Rack and pinion, gear drive/Taiwan

Z movement

Ball screw drive/Germany

Guide

Linear 20 square/Taiwan

Max. speed

35,000mm/min

Max. cutting speed

25,000mm/min

Spindle 1

4.5 kw/(wind cooling)

Spindle 1 speed

18,000rpm

Inverter 1 power

7.5kw

Spindle 2

6 kw/wind cooling (can use in 90 degree)

Spindle 2 speed

18,000rpm

Inverter 2 power

11kw

Drive motors

stepper

Working voltage

AC380V/50-60Hz, 3-phase

Command code

G code

Computer interface

USB 2.2

Collet

ER25-12.7mm,6mm,3.175mm

Software

Type3 Software/France

Controls

DSP0501 For Two Spindle

Packing dimensions

2260 x 3100 x 1960 mm,1450 kgs

Equipment included

A. Oil lubrication system

B. Auto adjusting device

Equipment available

A. Vacuum system

B. Dust collector
