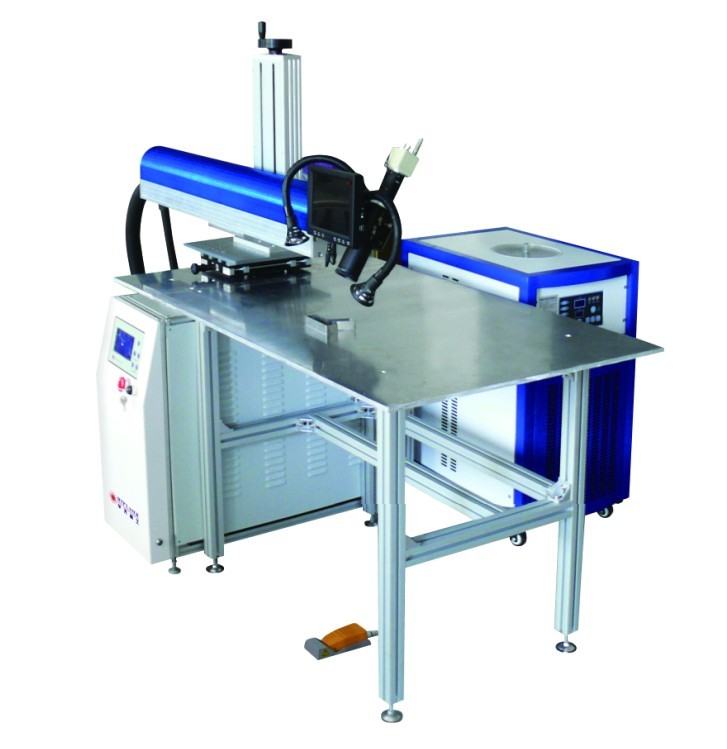

Welding Letter Machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
OPTIMA
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 6000.00-8000.00 /Set
Shippment Port:
Any port of China
Payment Terms:
L/C ,D/P,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets
Delivery Time:
Month
Packaging:
Exported Standard Pack
Mr. Wang Ethan



Send a Message to this Supplier

Product Details Company Profile

Data:

WY-200HZ Model

WY-200HZ

Mechanical Parts

optical bench extension range 750mm Rotary 90

X,Y,Z Working Process

750*1000 mm

Table Bearing Limit

200KGS

Voltage Supply

220V±10%/50/60Hz or 380V±10%/50/60Hz

Laser Model

Nd :YAG impulsive lamp

Spot Adjust range

0.1--0.3MM

Spot range

0.2--3.0MM

Laser Wave Length

1064 MM

Pulse Width

15M/S

Max Laser Power

200W

Pulse Frequency

15Hz

Laser Output Focus

110MM/150MM(Optional)

Laser Cooling System

Water cooling

Observation System

CCD or Microscope

Up and Down Process

300MM

Horizontal process

200MM

Functions and Applications :

Features

Red light can automatically rapid check the welding point ,observing directly through the CCD  or alter microscope.

Fast speed processing , professional fixed-focus clamp,rapidly testing the welding point by automatic focus without CCD and Microscope

with the superfine locating rod inside,the light-spot doesn't need to adjust its positions in the turning points of the characters.

Applications

Suitable for various Fine words , Titanium words , Metals plate painting words (stainless steel plate, iron plate, galvanize plate ) , Advertising and Sign words and different Metal signs and LED letters shell welded.

Packing Size:

Packing

Length

Width

Height

Unit

Size

8

1.3

1.5

M

Volume

2.5CBM

Service:

Warranty

One year

Technical Support

All Life ( If machine is blocked, please contact us immediately and we will arrange for technical engineer to solve).

Trading Terms:

Payment Terms

T/T ,  L/C,  Western Union

Delivery Terms

FOB Shanghai

Payment Condition

By T/T , 30% as deposit before shipping pay off the balance.

Packing

Exported Standard Pack

Supply Capacity

200Sets / Month

Price

FOB Shanghai USD6,800.00

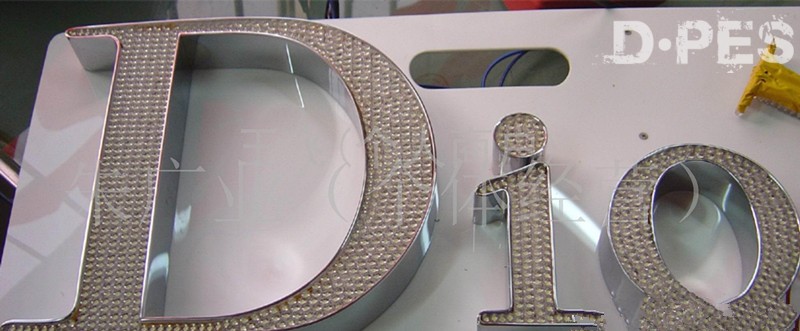

Samples Display

Samples Display

                         Samples Performed
