laser sticker label die cutting machine ZJJB-3030
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
ZJJB-3030
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Shanghai
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
6000 Set/Sets
Delivery Time:
Year
Packaging:
Wooden Case
Miss. Li Kelly



Send a Message to this Supplier

Product Details Company Profile

CNC Laser Cutter Sticker Labels in Rolls



Laser Kiss Cutting Introduction:

Laser kiss cutting is used to cut the top layer of a material without cutting through an attached material.  Sticker labels are a good example of laser kiss cutting in action. In this process, the outline of the label can be cut without cutting the release or backing material. Typically, C02 lasers are used for kiss cutting applications. Laser kiss cutting can also be combined with perforating or “through cutting” on a single application.



Laser Kiss Cutting Advantages:

(1)Virtually unlimited cutting path. The point can be moved in any direction(typically 2D) unlike other processes that use knives or saws.

(2)Can process flat sheets or material in roll form.

(3)Technology is well suited to fabricating high accuracy parts, especially from flexible materials. The laser beam exerts no force on the part and is focused on very small spot, allowing the part to keep its original shape from start to finish.

(4)Sticky materials that would otherwise gum up a blade can be kiss cut.

(5)High speed cutting with accuracy, especially with Golden Laser’s unique power control.

(6)Cost effective process with low operating and material costs.

(7)Digital process, no expensive dies required.

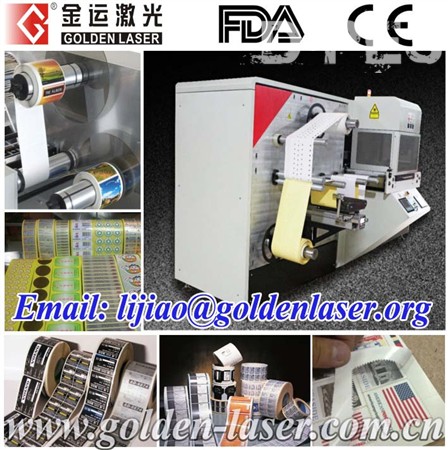

Recommend Model No.1: Roll to Roll High Speed Laser Cutting Machine for Stickers Label ZJJB-3030



Printing labels/film/sticker laser cutting application:



Golden Laser - Laser Cutting Advantages:

1,Non-touching heating processing;

2,Section smooth, fast, no deformation, no wear, no need mould;

3,High precise laser cutting;

4,Personalized cutting designs;

5,Low maintenance and operation cost;

6,Easy operation;

7,Creat incredible high added-value of your products;

8,No need to design mold for die cutting.

Machine Features:

Specially developed for cutting, punching and marking on stickers, plastic films and other volume materials.



No mold, successfully replaced the traditional die-cutting, without cutting graphical restrictions, cutting speed, short processing cycle.



Flight of high-speed galvanometer cutting, continuous automatic cutting of rolls of printed stickers and other materials.



Color sensors to locate the cutting graphics than the camera positioning, precision die-cutting, after focusing the optical principle, so that spot more detailed and cut better.



Correction system with automatic admission to feed more precise, in order to ensure the die-cutting accuracy, feed speed up to 60m/min, to ensure the efficiency of cutting.

Application Field:

Applicable to stickers, films and other volume materials.

Applicable to printing & packaging industry.

Technical Parameter:



Laser types

CO2 RF metal laser tube

Laser power

200W

Cutting area

300mm×300mm

Working speed

0-4000mm/s

Kiss-cutting accuracy

± 0.1mm

Material feeding speed

0-60m/min

Motion system

Servo motion system, LCD CNC system

Cooling system

Constant temperature water chiller

Power supply

AC220V±5%    50/60HZ

Format supported

AI, BMP, PLT, DXF, DST etc.

Standard collocation

Fixed top and bottom exhaust fans, automatic position correcting device, color sensor device

Optional collocation

150W/500W CO2 RF metal laser tube



****************************************************************************************************
