Auto Feeder Laser Synthetic Label Cutting Machinery
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
ZDJG-3020LD
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Shanghai
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
6000 Set/Sets
Delivery Time:
Year
Packaging:
Wooden Case
Miss. Li Kelly



Send a Message to this Supplier

Product Details Company Profile

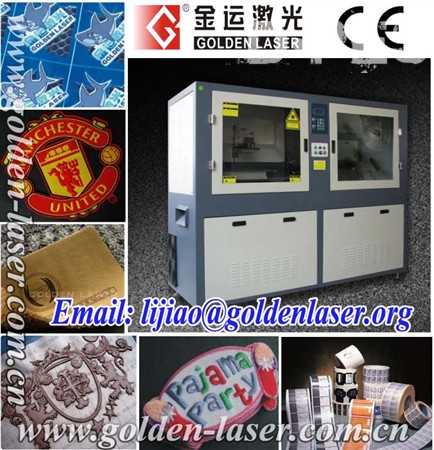

ZDJG-3020LD Auto Feeding Label Laser Cutting Machine



this machine is capable of cutting out paper label, synthetic labels, adhesive label, self adhesive label, adhesive film, adhesive sticker, printed label, etc. It is much suitable for cutting label and film from roll into sheets, slitting labels and kiss cutting labels.



Machine Features:

1. Closed-type mechanical design, complying with CE standards.

2. Combining mechanical design, safety principles and international quality standards all in one, it is safe and environment-friendly.

3. Especially designed for continuous and automatic cutting roll label and roll materials.

4. With 5,000,000 pixel high precision visual recognition system. Large range of CCD vision area, and good recognition effect.

5. It is able to overcome problems of roll label position skewing and label deformation resulting from feeding and rewinding tension.

6. Automatic processing of roll label feeding, cutting and rewinding.



Advanced hardware technology features:

1.CCD camera FPS is 25 frame/s, quick feedback, without stop point.

2.Camera installation and adjustment conveniently, once adjusted well, it will be working.

3.Professional optical resource, camera for accurate and quick positioning.

4.Automatic search, without any labels left out.

5.Equipped auto-feeder unwind and rewind system, ensure the labels loading, cutting, unloading as completely.



Technical Parameter

Laser Type

Chinese DC glass CO2 laser tube

Laser Power

65W

Cutting Area

200mm×300mm

Working Table

Vacuum absorbing conveyor working table

CCD Camera Single Visual Field

120mm×150mm

Cutting Speed

0-36000mm/min

Repeating Location

±0.1mm

Motion System

Online motion control system

Power Supply

AC220V ± 5% / 50Hz

Format Support

AI, BMP, PLT, DXF, DST, etc.

Auxiliary Device

Chiller CW3000, Mini air compressor, 550W exhaust fans

Optional Device

Constant temperature water chiller

Working size and laser power can be customized according to requirement.



We also supply other models of label laser cutting machines:

ZDJG-9050/12060 Automatic Recognition Label Laser Cutting Machine

ZDJG-15090LD Automatic Recognition Laser Cutting Machine

ZDJGHY-15090LDII Double Head Automatic Recognition Laser Cutting Machine

****************************************************************************************************
