Stone engraving cnc router/stone carving machine/stone cutting engraving machine/cnc router for stone carving JCUT-9090C(35.4X35.4X 7.8inch)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JCUT-9090C
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
0.00-0.00 /
Shippment Port:
Qingdao
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
30 Set/Sets
Delivery Time:
Month
Packaging:
wooden packing for export
Mr. Li Pengfei



Send a Message to this Supplier

Supplier Details
Product Details Company Profile

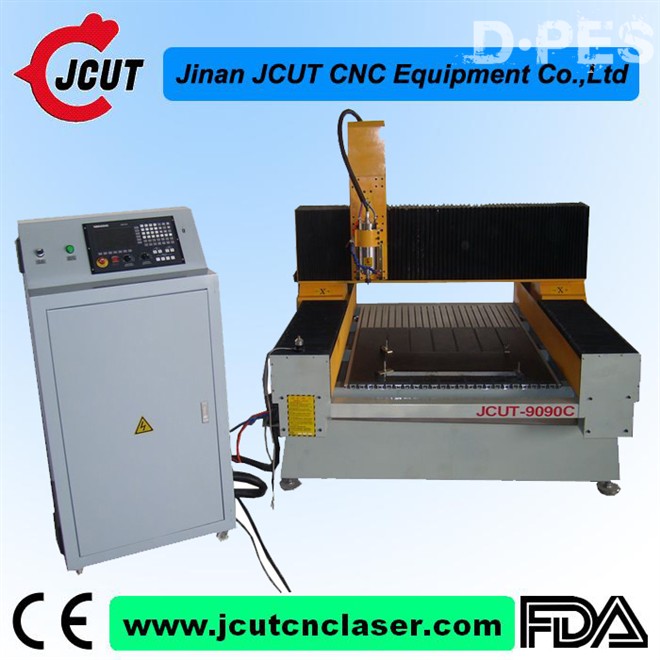

Stone engraving cnc router/stone carving machine/stone cutting engraving machine/cnc router for stone carving JCUT-9090C(35.4X35.4X 7.8inch)

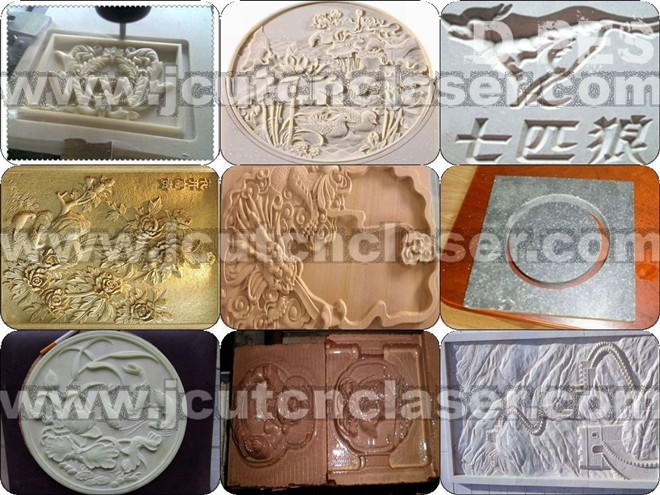

This series of models are mainly used for heavy stone engraving and carving.

4

Performance Features:
1.Three axes adopt import linear orbit, two line sliding track, heavy loading, stable working, high precision, long lifetime .
2. Whole seamless weld steel structure, not easy to distort, the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
3. Constant power spindle and motor, high cutting capability, high efficiency.
4. Well compatibility, compatible software CAD/CAM, such as Type 3, Artcam,Castmate,Artcam,Coredraw.
5. Double direction cutters cooling system can prolong the lifetime of using.
6. High flexibility, uneasy distorted cable and imported electronic components guarantee the stability of operating the machines.


Parameters:

Working Area (X*Y*Z):900X900X300mm (35.4X35.4X 11.8inch)

Table size: 1000x1000mm

Processing accuracy: 0.03mm

Repositioning accuracy: 0.02mm

Spindle: 4.5 KW constant power spindle

Spindle rotating speed: 0-24000rpm/min

Max Moving Speed: 7000mm/min

Working speed: 0-4000mm/min

Driving mode: rack

Voltage: AC220V/50Hz

Max. Power consumption: 6.2KW

Feeding Height: 300mm

Drive motor: stepper motor

Command:G.code , mmg , plt , uoo,HPGL

Control software: Ncstudio

Compatible Software: Type3, Artcut, ArtCAM, masterCAM software

Certificate:CE, FDA

Pack dimensions: 1400mm X 1400mm X 1650mm wooden trunk

Net weight: 390KG
