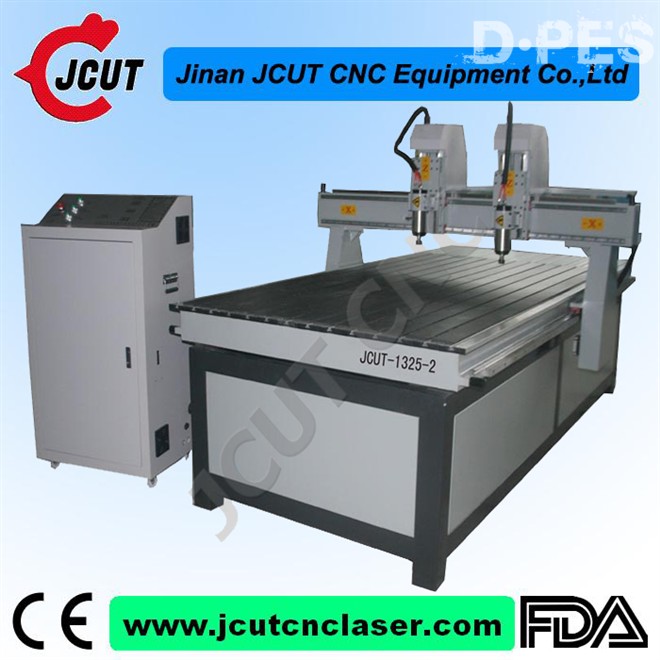

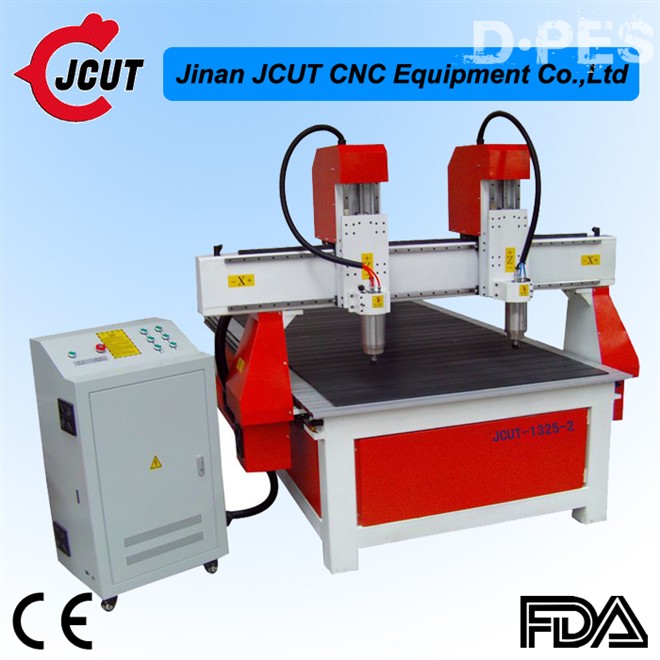

Dual heads cnc router/double heads woodworking router/twin heads cnc router machine/Multi heads wood cnc router JCUT-1325-2(51'/2x98'x5.9')

Features: (with two separate heads)

Applications:

Furniture decoration, Musical Instruments industry, wooden crafts industry, large area plank plane sculpture, solid wood furniture, annatto furniture, real wood art mural, density board paint-free door, Wood composite door, wardrobe, cabinets, beside cupboard, screen engraving and so on.



Parameter:

1) Machine body: whole weld steel tube

2) Guideway:XYZ-axis use linear guideway

3) Driving mode:Gear

4) Work dimensions: 1,300/2mm x 2500mm x 150mm

5) Z-axis working area: 150mm

6) Max. Feeding height: 150mm

7) Cut thickness of material: ≤40mm

8) Max. Speed: 25,000mm/min

9) Working speed: 0 - 8,000mm/min

10) Mechanical precision: 0.01mm

11) Software: type 3 software, Artcut software, Artcam software

12) Max. Power consumption: 6.9kW

13) Power source: AC 220/50/60Hz (or 110v/60HZ)

14) Driver type: stepper motor(XZ-85BYG, Y-axis use two 85BYG motors)

15) Memory: without or (DSP)

16) Spindle: 2 x 3kW water-cooled spindles

17) Spindle speed: 0 - 24,000rpm/min

18) Blade diameter:3.175mm, 4mm,6mm (or 8mm,10mm,12mm, 12.7mm)

19) Control system: (NCSTUDIO) or DSP (USB interface)

20) Command: G code, u00, mmg, plt

21) Running circumstance temperature: 0 - 45°C

22) Relative humidity: 30% - 75%
